A powerful large-scale machine that delivers high output and good-shaped aggregate.

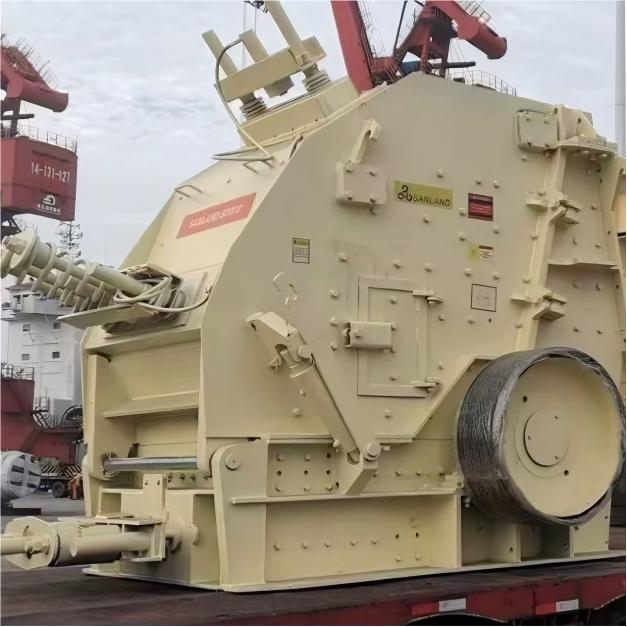

Equipment type: Horizontal shaft impact crusher (HSI Crusher) Feed size: ≤1300 mm Capacity: 60-1200 t/h Suitable materials: granite, basalt, quartzite, iron ore, diabase, calcite, dolomite and many other ores and construction aggregates

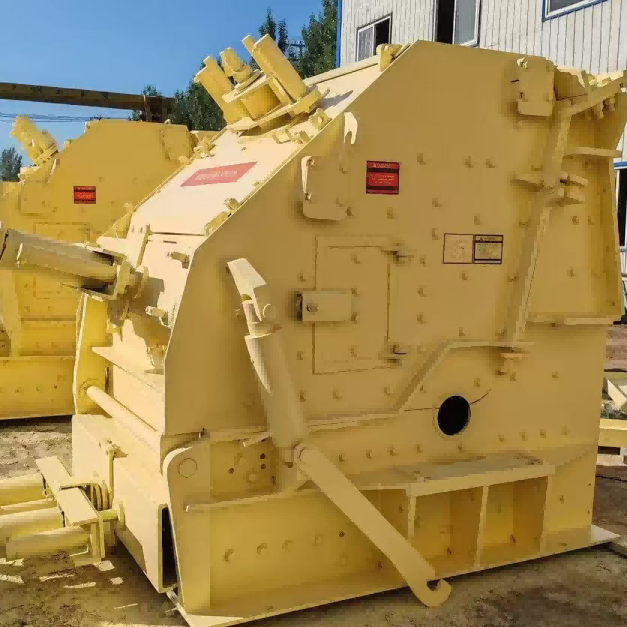

This Impact aggregate crusher is an upgraded version of the traditional impact crusher. It keeps the excellent product shape that impact crushers are known for, while improving the rotor design, making better use of the crushing chamber and strengthening key parts. The result is much higher capacity. It is especially useful for large aggregate plants, mining projects and upgrades where space is limited.
Standard impact crushers often hit a capacity limit.
Expanding production usually means buying extra machines, which costs more, takes up more space and increases maintenance work.
On older plants the layout is fixed, so adding equipment is hard. Weaker designs also wear faster, vibrate more and stop more often during long runs.
High- Efficiency Impact Crushing with a strengthened rotor, optimised chamber, high-wear materials and hydraulic adjustment gives higher single-machine capacity and steadier long-term running. This helps lower the cost per tonne of finished stone.

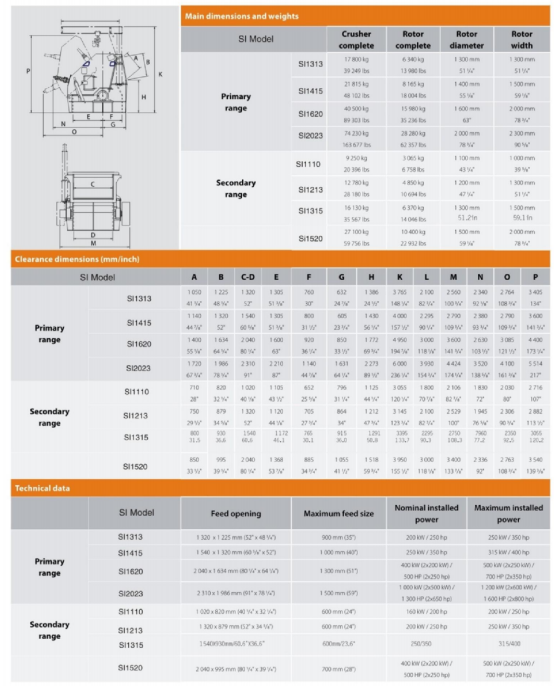

Range | Model | Complete crusher weight | Rotor complete weight | Rotor dimensions | |||
kg | lbs | kg | lbs | Diameter | Width | ||
Primary | SI1313 | 17800 | 39249 | 6340 | 13901 | 1300mm (51") | 1300mm (51") |
SI1415 | 21815 | 48102 | 8165 | 18004 | 1400mm (55") | 1500mm (59") | |
SI1620 | 40500 | 89303 | 15980 | 35236 | 1600mm (63") | 2000mm (78") | |
SI2023 | 74230 | 163677 | 28280 | 62357 | 2000mm (78") | 2300mm (90") | |
Secondary | SI1110 | 9250 | 20360 | 3065 | 6758 | 1100mm (43") | 1000mm (39") |
SI1213 | 12780 | 28180 | 4850 | 10694 | 1200mm (47") | 1300mm (51") | |
SI1315 | 16130 | 35567 | 6370 | 14046 | 1300mm (51") | 1500mm (59") | |
SI1520 | 27100 | 59756 | 10400 | 22932 | 1500mm (59") | 2000mm (78") | |
Model | A | B | C-D | E | F | G | H | K | L | M | N | O | P | |
Primary | SI1313 | 1,050 (41.3") | 1225(48.3") | 1,320 (52") | 1,305 (51.4") | 760(30") | 632 (24.9") | 1386 (24.5") | 3765(148.2") | 2100 (82.7") | 2,560 (100.7") | 2,340 (92.1") | 2,764 (108.7") | 3405 (134") |
SI1415 | 1,140 (44.9") | 1,320 (52.0") | 1,540 (60.6") | 1,305 (51.4") | 800 (31.5") | 605 (23.8") | 1,430 (56.3") | 4,000 (157.5") | 2,295 (90.4") | 2,790 (109.8") | 2,380 (93.7") | 2,790 (109.8") | 3,600 (141.7") | |
SI1620 | 1,400 (55.1") | 1,634 (64.3") | 2,040 (80.3") | 1,600 (63.0") | 920 (36.2") | 850 (33.5") | 1,772 (69.8") | 4,950 (194.9") | 3,000 (118.1") | 3,600 (141.7") | 2630 (103.5") | 3085 (121.5") | 4400 (173.3") | |
SI2023 | 1,720 (67.7") | 1,986 (78.2") | 2,310 (90.9") | 2,210 (87.0") | 1,140 (44.9") | 1,631 (64.2") | 2,273 (89.5") | 6,000 (236.2") | 3,930 (154.7") | 4,424 (174.2") | 3,520 (138.6") | 4,100 (161.4") | 5,514 (217.1") | |
Secondary | SI1110 | 710 (28.0") | 820 (32.3") | 1,020 (40.2") | 1,105 (43.5") | 652 (25.7") | 796 (31.3") | 1,125 (44.3") | 3,055 (120.3") | 1,800 (70.9") | 2,106 (82.9") | 1,830 (72.0") | 2,030 (79.9") | 2,716 (106.9") |
SI1213 | 750 (29.5") | 879 (34.6") | 1,320 (52.0") | 1,120 (44.1") | 705 (27.8") | 864 (34.0") | 1,212 (47.7") | 3,145 (123.8") | 2,100 (82.7") | 2,529 (99.6") | 1,945 (76.6") | 2,306 (90.8") | 2,882 (113.5") | |
SI1315 | 800 (31.5") | 930 (36.6") | 1,540 (60.6") | 1,172 (46.1") | 765 (30.1") | 915 (36.0") | 1,291 (50.8") | 3,395 (133.7") | 2,295 (90.3") | 2,750 (108.3") | 7960 (77.2") | 2,350 (92.5") | 3,055 (120.3") | |
SI1520 | 850 (33.5") | 995 (39.2") | 2,040 (80.3") | 1,368 (53.9") | 885 (34.8") | 1,055 (41.5") | 1,518 (59.8") | 3,950 (155.5") | 3,000 (118.1") | 3,400 (133.9") | 2,336 (92.0") | 2,763 (108.8") | 3,540 (139.4") | |
Range | Model | Feed opening | Maximum feed size | Nominal installed power | Maximum installed power | ||
kW | hp | kW | hp | ||||
Primary | SI1313 | 1320×1225mm (52"×48") | 900mm (35") | 200 | 250 | 250 | 350 |
SI1415 | 1540×1320mm (61"×52") | 1000mm (40") | 250 | 350 | 315 | 400 | |
SI1620 | 2040×1634mm (80"×64") | 1300mm (51") | 400 (2×200) | 500 (2×250) | 500 (2×250) | 700 (2×350) | |
SI2023 | 2310×1986mm (91"×78") | 1500mm (59") | 1000 (2×500) | 1300 (2×650) | 1200 (2×600) | 1600 (2×800) | |
Secondary | SI1110 | 1020×820mm (40"×32") | 600mm (24") | 160 | 200 | 200 | 250 |
SI1213 | 1320×879mm (52"×35") | 600mm (24") | 200 | 250 | 250 | 350 | |
SI1315 | 1540×930mm (61"×37") | 600mm (24") | 250 | 350 | 315 | 400 | |
SI1520 | 2040×995mm (80"×39") | 700mm (28") | 400 (2×200) | 500 (2×250) | 500 (2×250) | 700 (2×350) | |
For large aggregate projects that need higher output without adding more machines, the China impact crusher uses a reinforced heavy-duty rotor that makes better use of impact energy.
The machine breaks rock by impact, so material tends to split along its natural cracks.
A hydraulic adjustment system lets operators change the gap of the impact plates quickly and easily.
We match the right model of Impact stone crusher to your capacity target, material type and final product size.
The team can carry out material testing, plant layout planning, model selection and upgrades of existing lines.
Every solution is tailored to the actual site conditions.
Sanland was established in 1988 in Shenyang, China. We design and manufacture crushing, screening, mineral processing and material handling equipment.

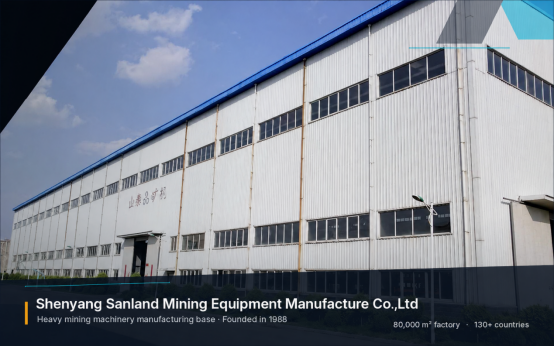

Our factories in Shenyang and Kaiyuan cover 95,000 m² and employ more than 350 people. We handle the entire production process in-house — from casting and machining to welding, assembly and testing — which lets us control quality at every stage.
In more than three decades, we’ve delivered over 110 crushing lines worldwide with capacities between 100 and 3,000 t/h. Beyond equipment supply, we also offer custom manufacturing, plant upgrades, process design, installation, commissioning and technical support.
Sanland machines are currently operating in mining, quarrying and aggregate projects across 60+ countries, including Chile, Peru, Australia, Saudi Arabia, Russia and Southeast Asia. Clients include BHP, Vale, CODELCO, Anglo American, ANSTEEL, Philex Mining, China Gold and Huaxin Cement.
We maintain a dedicated service centre in Ontario, Canada, with local engineers and a 3,000 m² parts warehouse to provide installation support, troubleshooting, spare parts and after-sales service.
Certified to ISO 14001 and ISO 45001, and holding AAA Enterprise Credit Certification plus multiple invention patents, Sanland continues to supply dependable equipment solutions to the global mining and aggregate industries.
Sanland offers complete support from the early project stage through delivery and later operation, helping keep the production line running efficiently and steadily.
Based on the customer’s working conditions and capacity goals, we provide project analysis, accurate equipment selection and full process design. This reduces investment risk from the start and delivers a solution that fits the site.
Manufacturing follows strict standards, with factory performance testing, custom packing and transport planning to protect quality and delivery times.
On-site installation guidance, commissioning, operator training, original spare parts and ongoing technical support are all available to keep the machine running reliably for the long term.
An industrial raw-material company in Dongguan had a limestone crushing line limited by space. They could not add extra machines to increase output. The old equipment also had low single-machine capacity and high maintenance needs, which held back production efficiency.
Sanland replaced the existing unit with an SI1213 Impact aggregate crusher. No extra space was needed and the original process flow stayed the same. The upgrade was completed quickly.
Results after the change:
No need to expand the site, yet overall plant capacity clearly improved and the expansion target was met
Finished aggregate shape and quality stayed consistent and met high-end industrial standards
Fewer machines were needed, so breakdowns and daily maintenance costs dropped a lot
Running stability improved and the equipment fully suits continuous high-intensity factory production
Is the Impact stone crusher suitable for large aggregate plants?
Yes. The series was developed for high-output aggregate production. With the improved rotor and chamber design it can meet the needs of large continuous operations.
What payment methods are accepted?
Usually a deposit is paid first and the balance is settled before shipment. Letter of credit and other standard international trade methods can also be used according to the customer’s preference.
Does the equipment carry the Sanland brand?
Yes. Sanland manufactures the machines itself. Every unit is marked with the brand name and a unique serial number so the origin can be traced. Customers receive genuine original equipment and full service support.
We are a professional manufacturer of mining machinery, specializing in the R&D and production of cone crushers, jaw crushers, and other mining crushing equipment. All equipment is manufactured and quality-controlled within our own production system, allowing us to directly address customer requirements and minimize intermediate links.

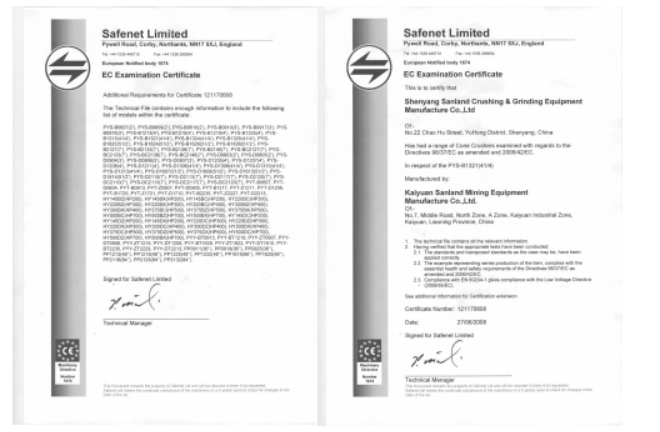

Yes. Our products can be supplied with internationally recognized certifications such as CE upon customer request. Our production processes strictly comply with quality management system requirements, ensuring that all equipment meets applicable safety and performance standards for export markets.
For standard models, we typically maintain a stable production cycle and complete delivery within 30 days. For customized configurations or special operating conditions, the lead time will be confirmed based on the specific solution. A clear production and delivery schedule will be provided upon order confirmation.
For complete machinery, the MOQ is generally one unit. For wear parts and accessories, the MOQ can be confirmed based on the specific model and requirements—please feel free to consult us for details.
Prior to shipment, all equipment undergoes anti-rust and anti-moisture treatment. We typically adopt wooden crates or reinforced packaging to ensure safe delivery during long-distance sea or land transportation.
We offer flexible shipping solutions including sea freight, land transportation, or multimodal transport, and we cooperate with customers or their designated freight forwarders to manage container loading and dispatch arrangements.
We generally support commonly used international payment methods such as T/T (telegraphic transfer). Specific payment terms can be negotiated based on the order value and cooperation circumstances.
Yes. We offer customized production and OEM services to meet specific customer requirements, including adjustments to equipment structure, technical parameters, and logo/branding customization.
Prior to order confirmation, we can provide product specifications, technical descriptions, application recommendations, and relevant images or documentation to help customers gain a thorough understanding of equipment performance and make informed procurement decisions.
