It can be a good option to keep your equipment in use most of the time and also move the crushing machine from one place to another.
Classification: Mobile crusher Application: Mining, quarry, concrete recycling, road work, large infrastructure Core advantages of this system are: Rapid set-up, simple and fast relocatability, high capacity for operating time, modular layout and flexible processes
Main type and equipment of the production: Mobile jaw crusher, mobile cone crusher, mobile impact crusher
Traditional fixed plant installation requires extensive heavy engineering works and the whole process takes time. Most of the plant machinery will be left behind when the plant shuts down resulting in low utilization of the equipment and consequently a delayed pay-back.
It is difficult to transport heavy machinery and install them at locations where you have limited space, especially when you need to work on very poor ground quality or where transport access is difficult (such as mining areas with no roads).
When the company works on different projects with materials, and conditions are quite different at each step, it gets complicated to use a fixed line for processing materials easily.
Our China cone breaking device is totally compact design, so the civil works required are minimal, production starts right away, and the machine can switch the site easily which leads to significant reduction of construction cost, high utilization of the equipments and improvement of the ROI (Return on Investment) in the long run.

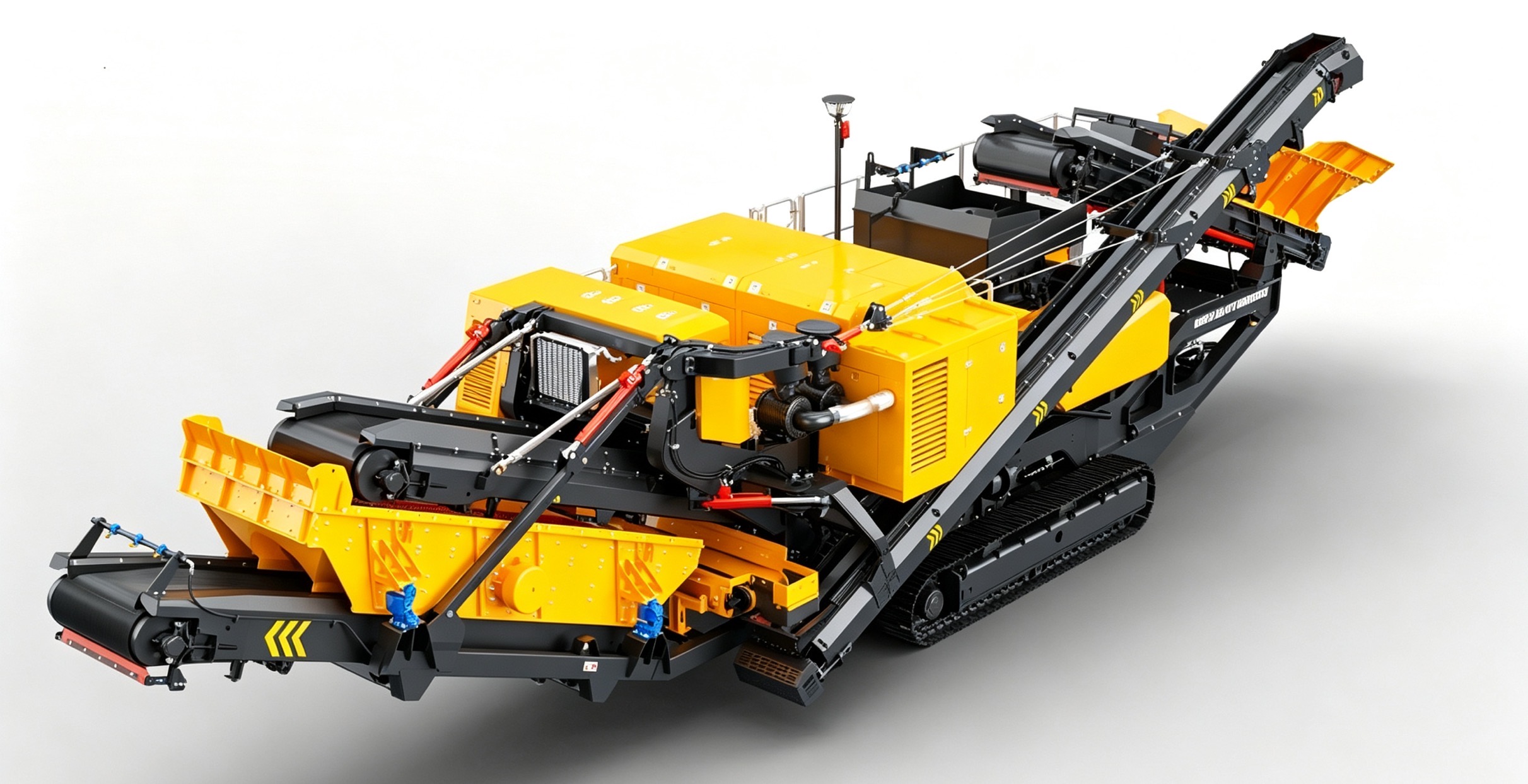

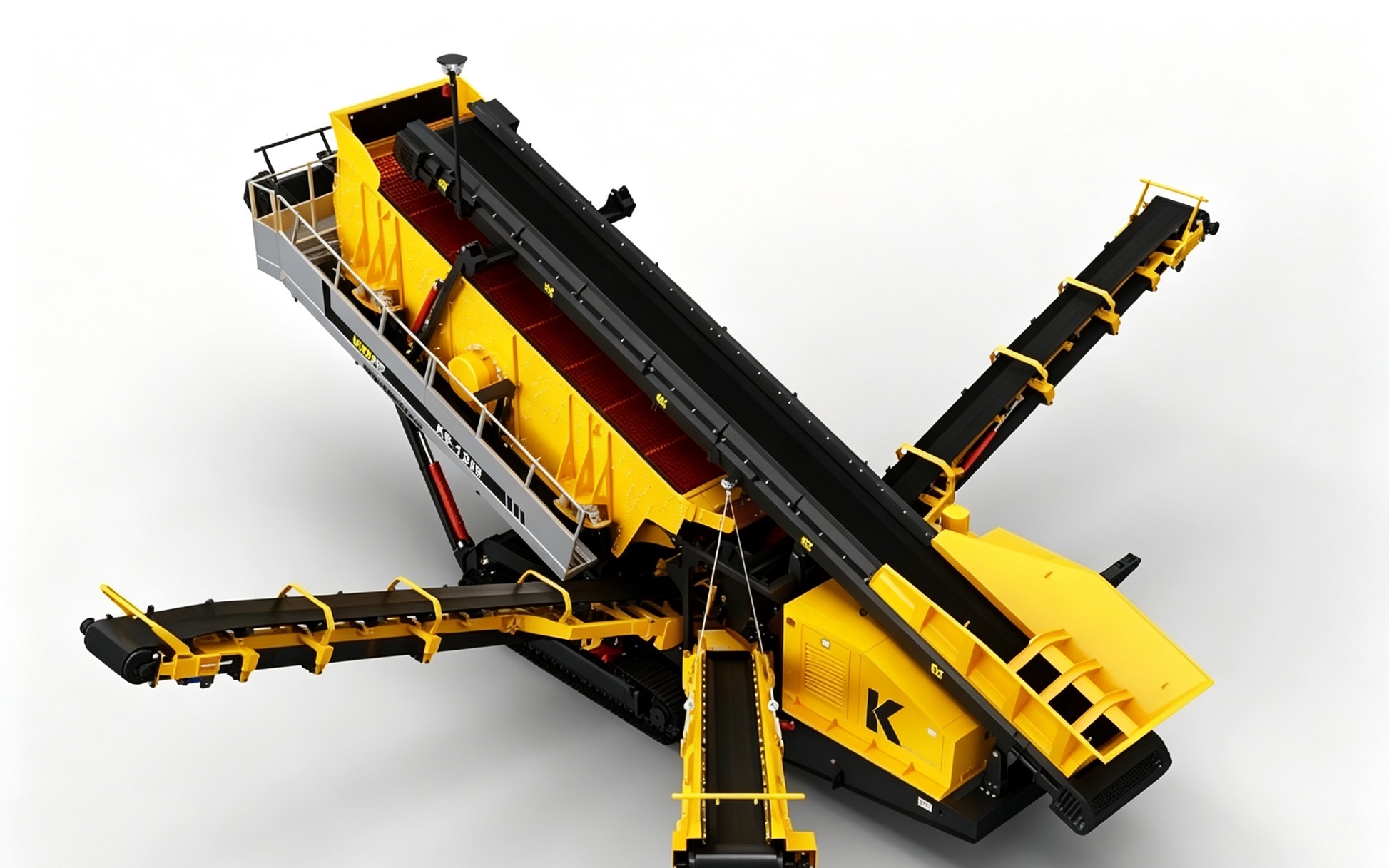

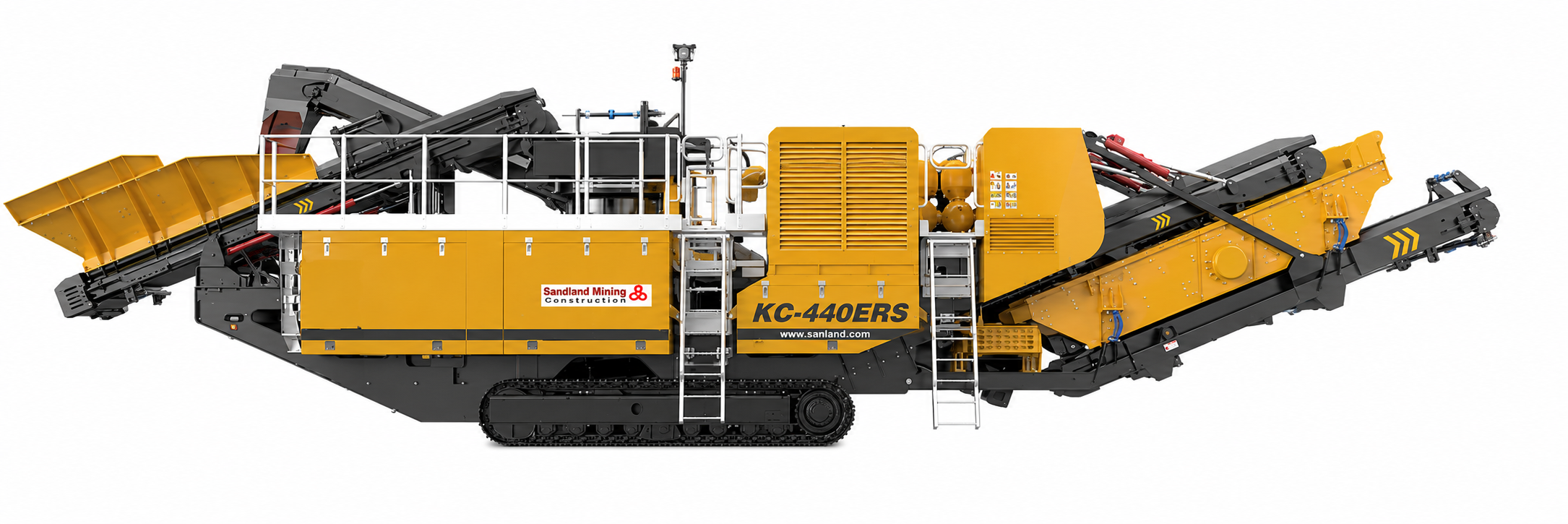

The unit comes complete with all necessary systems - feeding, crushing, screening, conveyor and power generation - mounted on a mobile frame so, in fact, the unit is a mobile crushing and screening plant.
A crawler-type jaw mobile crusher is usually used first for breaking down large size of very hard granite. Cone crusher system crushes the stones after primary crushing at high reduction ratios for hard rocks with better shaping of the aggregate output product. The crusher unit with mobility impact function suits more the processing of soft stone and construction debris as well as production of high-grade aggregates.
Modular in a sense that everything is assembled from modular components with which a small or even no civil foundation is needed and therefore a working day could be a new day as you may start the work just after the installation. It can be relocated, say, from one mining site to another which saves capital and operating costs by decreasing machine downtime.
Wheeled models are better for the short-distance transport on flat ground, whereas the caterpillar type of mobiles have superior mobility, which allows the plant to carry out frequent relocation without any problem even on the hardest and steepest terrains within the mine.
Parameter categories | Parameter name | Standard reference value | Is it customizable |
Crushing Performance | Processing Capacity | 50–800 tons/hour (commonly 200–500 tons/hour) | Customizable |
Maximum Feed Particle Size | 300–800 mm | ||
Discharge Particle Size | 0–5 / 5–20 / 20–40 mm | ||
Crushing Level | Basic / Intermediate / Tertiary Crushing | ||
Crushing Ratio | 4:1 – 10:1 | ||
Feeding System | Hopper Capacity | 5–15 m³ | |
Feeding Method | Vibrating Feeding / Grizzly Feeding | ||
Feeding Capacity | 200–1000 t/h | ||
Pre-screening System | Fine Material Separation | ||
| Jaw Crusher | Feed Opening Size | 600 × 900 mm / 800 × 1060 mm | |
| Motor Power | 75–200 kW | ||
| Max. Feed Size | 500–700 mm | ||
| Cone Crusher | Model | HP300 / HP400 / CS Series | |
| Motor Power | 132–315 kW | ||
| Max. Feed Size | 200–350 mm | ||
| Discharge Size Range | 6–51 mm | ||
| Impact Crusher | Rotor Size | 1000 × 1000 – 1600 × 2000 mm | |
| Rotor Speed | 500–900 rpm | ||
| Max. Feed Size | 300–600 mm | ||
| Screening System | Number of Screen Layers | 2–4 Layers | |
| Screening Area | 6–18 m² | ||
| Screening Efficiency | 85%–95% | ||
| Number of Final Product Sizes | 2–4 Types | ||
| Conveying System | Belt Width | 500–1200 mm | |
| Conveying Capacity | 100–1000 t/h | ||
| Stockpile Height | 3–6 m | ||
| Conveyor Length | 6–20 m | ||
| Mobile System | Mobility Type | Crawler Type / Wheeled Type | |
| Travel Speed | 0.8–2.5 km/h | ||
| Gradeability | 20°–30° | ||
| Ground Pressure | 0.05–0.12 MPa | ||
| Power System | Engine Brand | Cummins / Caterpillar / Weichai | |
| Engine Power | 200–600 kW | ||
| Total Installed Power | 150–800 kW | ||
| Fuel Consumption | 20–60 L/h | ||
| Power Mode | Diesel / Electric / Hybrid | ||
| Control System | Control Mode | Manual / Semi-automatic / Fully Automatic | |
| PLC System | Siemens / Schneider | ||
| Remote Control | Supported | ||
| Monitoring System | Optional Remote IoT Monitoring | ||
| Overall machine parameters | Working dimensions | 15–25 × 3–4 × 4–5 meters | |
| Transportation dimensions | 14–22 × 3–3.5 × 3.8–4.2 meters | ||
| Overall weight | 30–120 tons | ||
| Operating condition adaptability | Operating temperature | -20℃～45℃ | |
| Altitude range | ≤3000 meters | ||
| Application areas | Quarry / Mine / Construction Waste / Infrastructure Project | ||
| Production efficiency | Equipment utilization rate | 70%–90% | |
| Operating stability rate | 85%–95% | ||
| Maintenance cycle | 200–500 hours |
Look at the material: Match the main crusher model to rock hardness, abrasiveness and maximum feed size.
Look at production needs: Decide hourly capacity, finished product size and whether screening is required, then choose the right combination of units.
Look at the site: Consider ground conditions, how often the plant will move and transport routes, then choose tracked or wheeled chassis.
Custom service: Our team can plan the process flow, match the machines and calculate capacity so the plant fits the real project conditions.

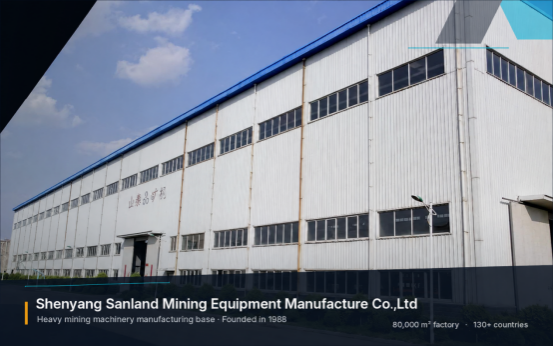

Founded in 1988 and based in Shenyang, China, Shenyang Sanland Mining Equipment Manufacture Co., Ltd. is a professional manufacturer of crushing, screening, mineral processing and material handling equipment.
With production bases in Shenyang and Kaiyuan, Sanland operates facilities covering 95,000 m² with more than 350 employees. The company has complete manufacturing capabilities, including casting, machining, welding, assembly and testing, allowing strict quality control from raw materials to finished equipment.
With over 30 years of industry experience, Sanland has completed more than 110 crushing production lines worldwide, with capacities ranging from 100 t/h to 3,000 t/h. The company also provides customized equipment manufacturing, plant upgrading, process design, installation, commissioning and technical support.
Sanland equipment has been supplied to mining, quarrying and aggregate projects in 60+ countries and regions, including Chile, Peru, Australia, Saudi Arabia, Russia and Southeast Asia. Our projects have supported customers such as BHP, Vale, CODELCO, Anglo American, ANSTEEL, Philex Mining, China Gold and Huaxin Cement.
To better serve global customers, Sanland operates an overseas service center in Ontario, Canada, with local engineers and a 3,000 m² spare parts warehouse, providing installation support, troubleshooting, spare parts supply and after-sales service.

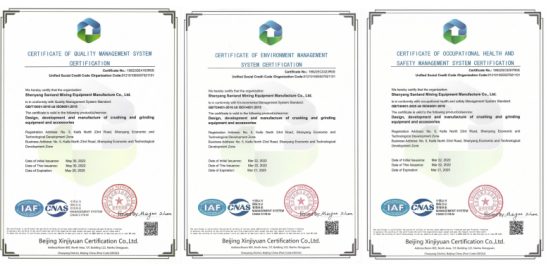

Sanland is certified with ISO 14001, ISO 45001, AAA Enterprise Credit Certification, and holds multiple invention patents. With strong manufacturing experience and global project expertise, Sanland continues to provide reliable equipment solutions for mining and aggregate industries worldwide.
Sector: quarry (industrial sand and aggregate) Material: granite
Sanland was commissioned for a crawler type crushing unit of the company’s quarry. The granite quarry site continued its development and therefore the equipment had to be moved in the course of the work face advancement.
The crusher system that is mainly used includes:
Feed
Primary
Secondary Crusher
Screening
No need to build the big civil foundation. The machine could follow the front when it was advancing.
The company was able to improve production flexibility significantly besides the fact that investment in building civil works was reduced very much after the project started up.
What is a mobile crushing plant?

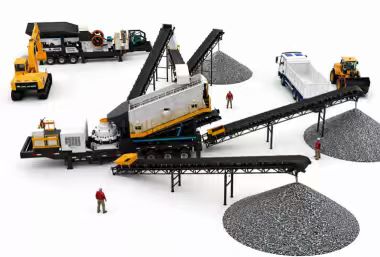

It is a self-contained production unit that combines feeding, crushing, screening and conveying. The whole plant can be moved quickly from one project to another as needed.
How do I choose between tracked and wheeled models?
Tracked versions suit rough mining ground and short on-site moves. Wheeled versions are better when the plant needs to travel on roads or move between distant sites.
Does Sanland supply complete mobile crushing solutions?
Yes. We can handle equipment selection, process design, production configuration and after-sales support according to the customer’s project conditions.
We are a professional manufacturer of mining machinery, specializing in the R&D and production of cone crushers, jaw crushers, and other mining crushing equipment. All equipment is manufactured and quality-controlled within our own production system, allowing us to directly address customer requirements and minimize intermediate links.

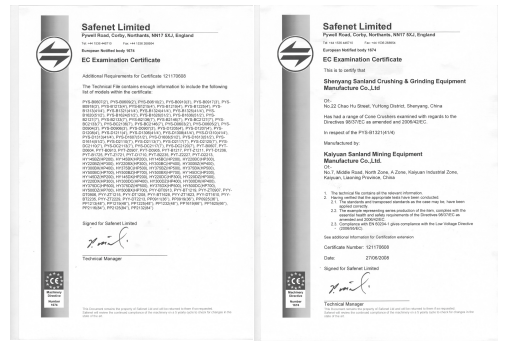

Yes. Our products can be supplied with internationally recognized certifications such as CE upon customer request. Our production processes strictly comply with quality management system requirements, ensuring that all equipment meets applicable safety and performance standards for export markets.
For standard models, we typically maintain a stable production cycle and complete delivery within 30 days. For customized configurations or special operating conditions, the lead time will be confirmed based on the specific solution. A clear production and delivery schedule will be provided upon order confirmation.
For complete machinery, the MOQ is generally one unit. For wear parts and accessories, the MOQ can be confirmed based on the specific model and requirements—please feel free to consult us for details.
Prior to shipment, all equipment undergoes anti-rust and anti-moisture treatment. We typically adopt wooden crates or reinforced packaging to ensure safe delivery during long-distance sea or land transportation.
We offer flexible shipping solutions including sea freight, land transportation, or multimodal transport, and we cooperate with customers or their designated freight forwarders to manage container loading and dispatch arrangements.
We generally support commonly used international payment methods such as T/T (telegraphic transfer). Specific payment terms can be negotiated based on the order value and cooperation circumstances.
Yes. We offer customized production and OEM services to meet specific customer requirements, including adjustments to equipment structure, technical parameters, and logo/branding customization.
Prior to order confirmation, we can provide product specifications, technical descriptions, application recommendations, and relevant images or documentation to help customers gain a thorough understanding of equipment performance and make informed procurement decisions.
