Feed size: 0–350 mm
Handling capacity: 60–180 t/h
Suitable materials: granite, basalt, quartzite, iron ore, diabase, calcite, dolomite and others
The Chinese impact crusher applies a crushing method that is primarily through impact. Such machines are popular not only among mineral production, sand & aggregate but in construction, infrastructure, road & railways development.
An impacting mechanism, where an object is hit repeatedly by moving parts at a high velocity causing that material to break into smaller pieces is what the hydraulic impact crusher does.
Impact force generated by the rotor hitting material on the blow bars causes fragments to break at their least resistant line and produce more uniformly shaped products.
The Impact crusher machine is a superior performer in aggregate shape refinement when compared to some types of crushing machines that compress instead of striking. Therefore, it's a great fit for any projects requiring a high-level of finished product quality.
Every day, more and bigger infrastructure roads water projects, and water conservation schemes are calling for quality aggregates with less or more size particles in the mix and a flak free look on concrete materials.
This is a hard nut to crack for traditional crushing since it often produces too many flat particles and uneven grading which are not suitable for concrete sand and stone standards. In such situations, you can't do away with additional shaping equipment - which means extra capital investment and a more complex production line. For high-end aggregate projects, it's preferred to be equipped with equipment that can enhance the form of the particles
The Sanland Chinese Hydraulic Impact Crusher crushes by impact, the material is first attacked by the blow bars before it is slammed against the impact plates time to time until it meets the required size. As a result, the aggregate shape is greatly improved while it also meets the demands of a high-quality sand and stone production.

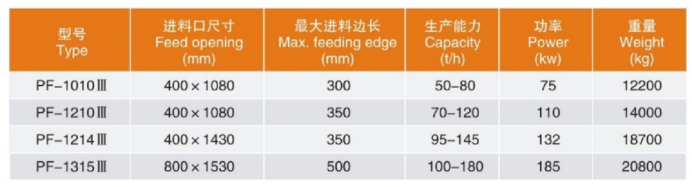

Model | Feed opening (mm) | Max feeding edge (mm) | Capacity (t/h) | Power (kW) | Weight (kg) |
PF-1010Ⅲ | 400×1080 | 300 | 50–80 | 75 | 12200 |
PF-1210Ⅲ | 400×1080 | 350 | 70–120 | 110 | 14000 |
PF-1214Ⅲ | 400×1430 | 350 | 95–145 | 132 | 18700 |
PF-1315Ⅲ | 800×1530 | 500 | 100–180 | 185 | 20800 |
The Impact crusher equipment uses impact crushing. Material is hit several times inside the chamber, so the finished particles are closer to cubic shape and the amount of flaky or elongated pieces is reduced.
By adjusting the gap between the impact plate and the rotor, the crushing result can be changed to meet different product size needs.
A relatively large reduction ratio can cut out some intermediate crushing stages, making it suitable for aggregate lines that aim for one-stage shaping.

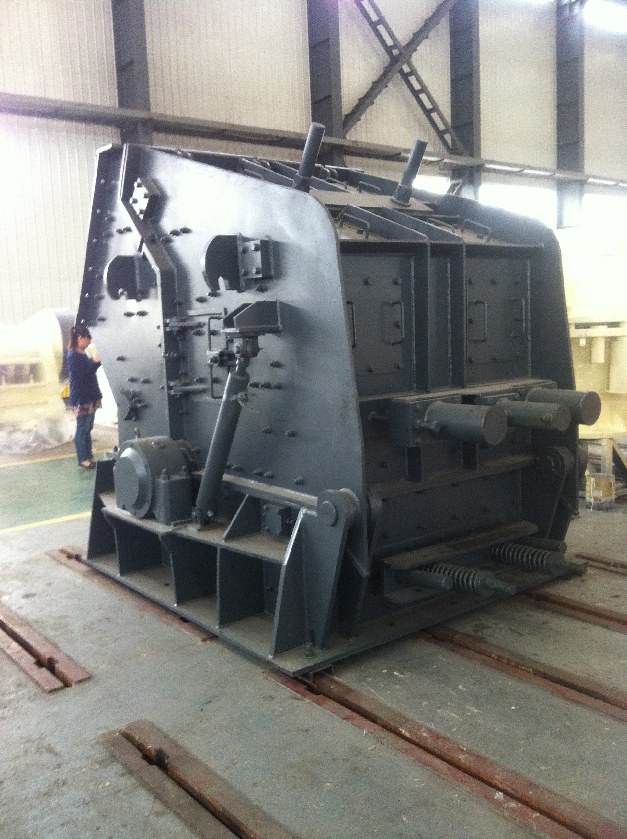

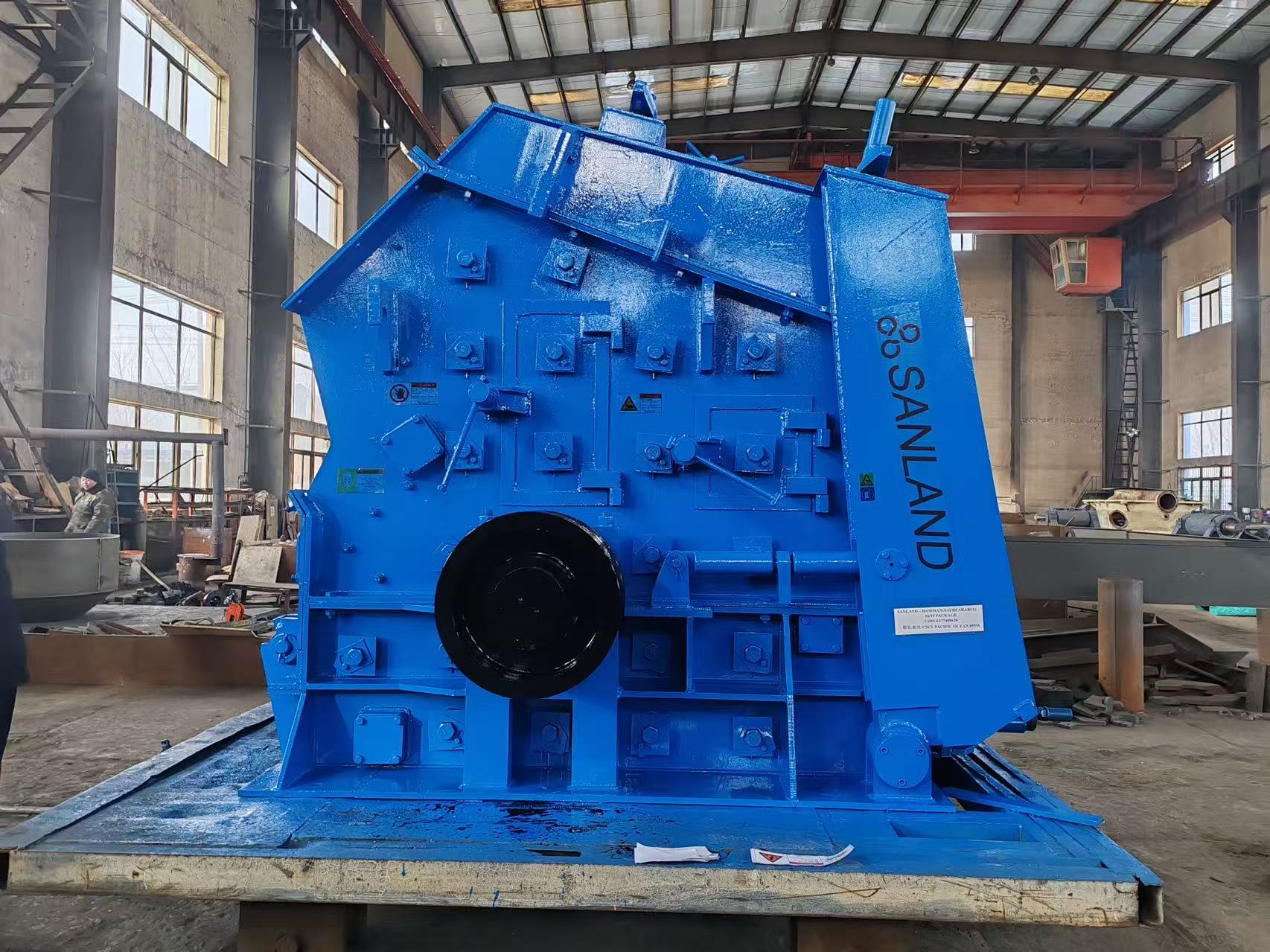

The machine is mainly made up of the rotor, blow bars and impact plates. The structure is clear, so daily checks and replacement of wear parts are straightforward.
The motor gets the rotor to turn at very high speed. The material drops into the crushing zone where it gets hit by the blow bars. After some rebound from the impact plates, the rock gets broken again until it gets the size it needs. The end product is smoothly carried out through the discharge opening. The impact plate gap can be manually adjusted or automated for easy control to get the final product size exactly.
Ensure that the impact Crusher continues in good shape:
Check on a regular basis for signs of wear on blow bars and impact liners, replace them promptly when they are worn.
Feed material evenly to the crusher and avoid a sudden influx of a few large rock.
Occasionally, you will need to recheck the rotor balance and remove unwanted materials from the chamber at the same time.
If the Impact crusher is regularly maintained according to standard procedures, then it will prevent unnecessary down time and significantly lengthen the life of the machine.
Raw material hardness, feed size, capacity and required aggregate specifications differ from project to project. Sanland evaluates material characteristics and site conditions, then provides model selection, crushing process planning, screening matching design and complete production line solutions to ensure the finished aggregate meets the required standards.
The PF series can be fitted with hydraulic adjustment and safety protection systems according to project needs. When running parameters become abnormal, operators can check the machine status in time and reduce the risk of damage from unusual conditions.

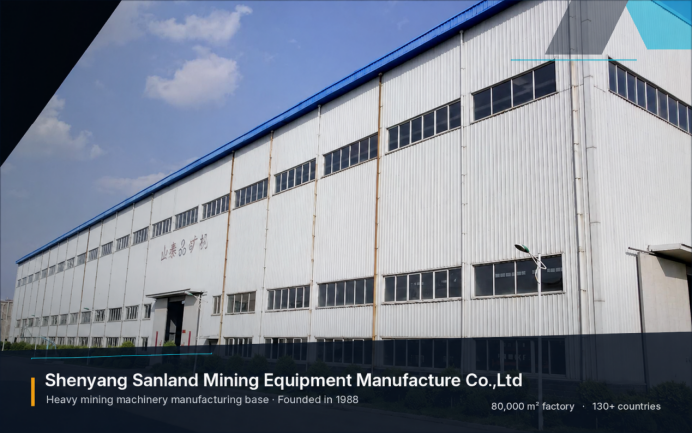

Shenyang Sanland Mining Equipment Manufacture Co., Ltd. has been based in Shenyang, China since 1988. We specialise in crushing, screening, mineral processing and material handling equipment.
Our two production bases in Shenyang and Kaiyuan cover 95,000 m² and employ more than 350 people. Because we handle casting, machining, welding, assembly and testing entirely in-house, we keep full control over quality from the first piece of steel to the finished machine.
In more than 30 years we have delivered over 110 complete crushing lines worldwide, with capacities from 100 t/h to 3,000 t/h. We also design and build custom equipment, upgrade existing plants, provide process design, and handle installation, commissioning and long-term technical support.
Today our equipment is operating in mining, quarrying and aggregate projects in more than 60 countries, including Chile, Peru, Australia, Saudi Arabia, Russia and Southeast Asia. Among our customers are BHP, Vale, CODELCO, Anglo American, ANSTEEL, Philex Mining, China Gold and Huaxin Cement.
We support international clients through a service centre in Ontario, Canada. Local engineers and a 3,000 m² spare-parts warehouse allow us to provide fast installation assistance, troubleshooting, parts supply and after-sales service.
Sanland provides full-project supporting services for global customers.
Before the sale – recommend suitable equipment based on material characteristics, capacity and finished product specifications During project implementation – installation guidance, equipment commissioning and operator training After start-up – remote technical support, spare-parts supply and on-site service, with the overseas network providing long-term support.
For impact crusher export needs we supply standard export packaging, transport planning, shipment. tracking and simultaneous spare-parts delivery. Customers can choose whole-machine or split transport, with a complete packing list provided.
Location: Finland
Material: Granite
They required high-quality aggregate for road and concrete work, so Sanland provided a feeding device, Jaw crusher, two PF1315 Impact crusher units, and Screening plant as part of an integrated Crusher Screening Production Line that meets all the specifications. The line was supplied to the Customer as a turnkey complete production line. At the input stage, the material size was 400-600mm; the resulting material were manufactured sand less than 4 mm and 4–21 mm and 21–30 mm aggregates. The project proved completely the performance of China's impact crusher machines in the production of aggregate out of hard rock.
Q: Can the Chinese Hydraulic Impact Crusher be customized? A: Yes. Sanland can configure the equipment according to the customer’s capacity, material properties, product size requirements and existing production line conditions.
Q: Is the equipment shipped as a complete unit or in parts? A: The transport plan is decided according to sea or land transport conditions and the site situation. Sanland provides a detailed packing list so the customer clearly understands the shipping composition.
Q: Is there a minimum order quantity when buying the equipment? A: There is no fixed minimum order quantity. Sanland recommends suitable models and configurations based on the customer’s actual production needs.
Q: What certifications does the company hold? A: The company holds ISO 14001 Environmental Management System Certification, ISO 45001 Occupational Health and Safety Management System Certification, multiple AAA-level enterprise credit certifications, invention patents and intellectual property certificates. Additional certifications can be provided according to market requirements.
The Chinese Hydraulic Impact Crusher, China impact crusher, Impact crusher machine, Impact crusher equipment and Chinese impact crusher supplier range gives plants a practical way to improve aggregate particle shape and meet the quality standards required for roads and construction projects.
We are a professional manufacturer of mining machinery, specializing in the R&D and production of cone crushers, jaw crushers, and other mining crushing equipment. All equipment is manufactured and quality-controlled within our own production system, allowing us to directly address customer requirements and minimize intermediate links.
Yes. Our products can be supplied with internationally recognized certifications such as CE upon customer request. Our production processes strictly comply with quality management system requirements, ensuring that all equipment meets applicable safety and performance standards for export markets.
For standard models, we typically maintain a stable production cycle and complete delivery within 30 days. For customized configurations or special operating conditions, the lead time will be confirmed based on the specific solution. A clear production and delivery schedule will be provided upon order confirmation.
For complete machinery, the MOQ is generally one unit. For wear parts and accessories, the MOQ can be confirmed based on the specific model and requirements—please feel free to consult us for details.
Prior to shipment, all equipment undergoes anti-rust and anti-moisture treatment. We typically adopt wooden crates or reinforced packaging to ensure safe delivery during long-distance sea or land transportation.
We offer flexible shipping solutions including sea freight, land transportation, or multimodal transport, and we cooperate with customers or their designated freight forwarders to manage container loading and dispatch arrangements.
We generally support commonly used international payment methods such as T/T (telegraphic transfer). Specific payment terms can be negotiated based on the order value and cooperation circumstances.
Yes. We offer customized production and OEM services to meet specific customer requirements, including adjustments to equipment structure, technical parameters, and logo/branding customization.
Prior to order confirmation, we can provide product specifications, technical descriptions, application recommendations, and relevant images or documentation to help customers gain a thorough understanding of equipment performance and make informed procurement decisions.
