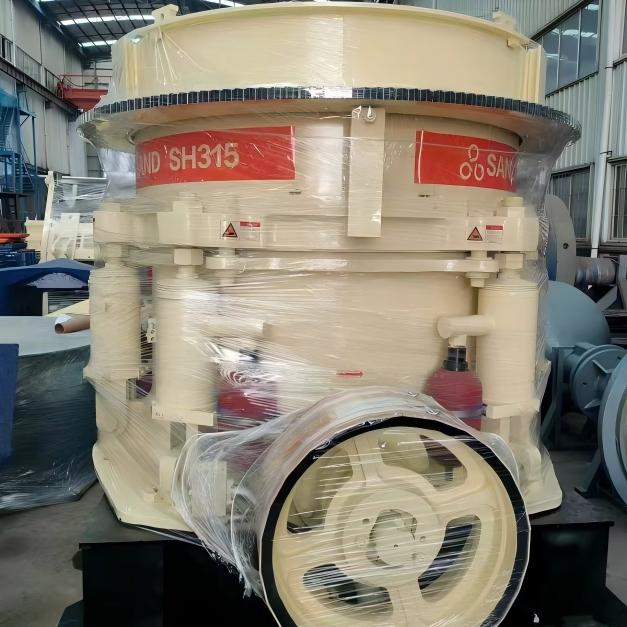

This Multi cylinder crushing machine efficiently delivers inter-particle crushing to reliably perform at aggregate and mine production.
Product type: Multi-cylinder Hydraulic Cone Crusher Feed size: ≤.330 mm Capacity: 45-870 t/h Suitable materials: granite, basalt, quartzite, iron ore, diabase and many metal and non-metal ores
Essential features: inter-particle crushing, excellent product shape, high-precision manufacturing, entirely hydraulic control and PLC smart operation.
Traditional impact crushing often produces too many flat particles and uneven grading, which fails to meet strict infrastructure standards.
As liners wear, the discharge opening drifts and product size changes. Operators have to adjust the machine frequently, which cuts capacity.
Under heavy load the protection is limited, so unexpected stops happen more often and maintenance costs rise.
Our solution relies on the Multi Cylinder crusher with multi-cylinder hydraulics, inter-particle crushing, smart automatic control and precise manufacturing. The result is better product quality, higher efficiency, steadier running and simpler maintenance.

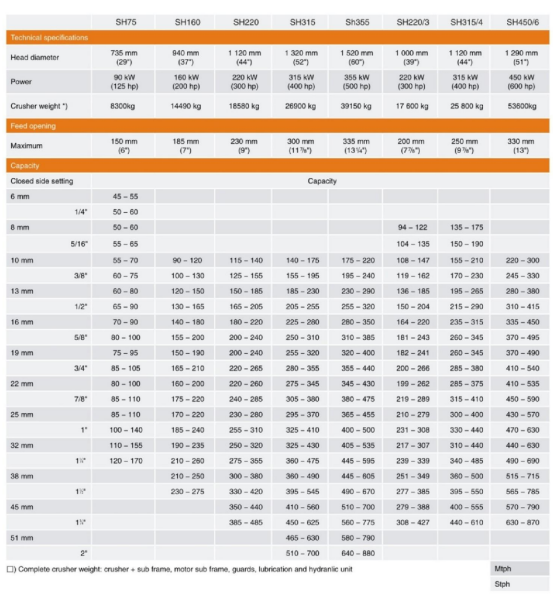

Model | Head diameter | Power | Crusher weight | Max feed | Capacity (t/h) at closed side setting (CSS) | |||||||||
|
|
|
|
| 6mm | 8mm | 10mm | 13mm | 16mm | 19mm | 22mm | 25mm | 32mm | |
SH75 | ||||||||||||||
SH75 | 735mm (-29") | 90kW (125 hp) | 8300kg | 150mm (-6") | 45–55 | 50–60 | 55–70 | 60–80 | 70–90 | 75–95 | 80–100 | 85–110 | 110–155 | |
SH160 | ||||||||||||||
SH160 | 940mm (-37") | 160kW (200 hp) | 14490kg | 185mm (-7") | — | — | 90–120 | 120–150 | 140–180 | 150–190 | 160–200 | 170–220 | 190–235 | |
SH220 | ||||||||||||||
SH220 | 1120mm (44") | 220kW (300 hp) | 18580kg | 230mm (-9") | — | — | 115–140 | 150–185 | 180–220 | 200–240 | 220–260 | 230–280 | 250–320 | |
SH315 | ||||||||||||||
SH315 | 1320mm (52") | 315kW (400 hp) | 26900kg | 300mm (-11.8") | — | — | 140–175 | 185–230 | 225–280 | 255–320 | 275–345 | 295–370 | 325–430 | |
SH355 | ||||||||||||||
SH355 | 1520mm (80") | 355kW (500 hp) | 39150kg | 335mm (13.2") | — | — | 175–220 | 230–290 | 280–350 | 320–400 | 345–430 | 365–455 | 405–535 | |
SH220/3 | ||||||||||||||
SH220/3 | 1000mm (39") | 220kW (300 hp) | 17600kg | 200mm (7.9") | 94–122 | 104–135 | 108–147 | 136–185 | 164–220 | 182–241 | 199–262 | 210–279 | 217–307 | |
SH315/4 | ||||||||||||||
SH315/4 | 1120mm (44") | 315kW (400 hp) | 25800kg | 250mm (9.8") | 135–175 | 150–190 | 155–210 | 195–265 | 235–315 | 260–345 | 285–375 | 300–400 | 310–440 | |
SH450/6 | ||||||||||||||
SH450/6 | 1290mm (51") | 450kW (800 hp) | 53600kg | 330mm (13") | — | — | 220–300 | 280–380 | 335–450 | 370–490 | 410–535 | 430–570 | 440–630 | |
Additional Capacity Data | ||||||||||||||
SH315 | 1320mm (52") | 315kW (400 hp) | 26900kg | 300mm (-11.8") | — | — | — | — | — | — | — | — | — | |
SH355 | 1520mm (80") | 355kW (500 hp) | 39150kg | 335mm (13.2") | — | — | — | — | — | — | — | — | — | |
This high-grade HP crusher is made by Sanland for aggregate plants and large-mining projects that require top-quality crushed aggregates.
Multi-particle crushing principle is the main crushing method here. Instead of crushing rocks against one rock one at the time, the rocks are crushed by squeezing them against the other particles present and the crushing force and speed can be optimized at the same time. The design of the crushing chamber, speed, stroke, etc. are the keys to getting optimal squeezing effect.
In this way, compared to old ways, this method of work reduces irregular breakage and results in finished particles that have:
better cubic shape.
flat and elongated particle content reduced.
grading stability improved.
overall quality of aggregates goes up.
Multi Cylinder hydraulic crusher is particularly recommended for expressways, railways, waterways and other premium-quality sand-and-gravel production.
Process role: Uses inter-particle crushing and is well suited to both mining and premium aggregate production. Finished particles stay well-shaped.

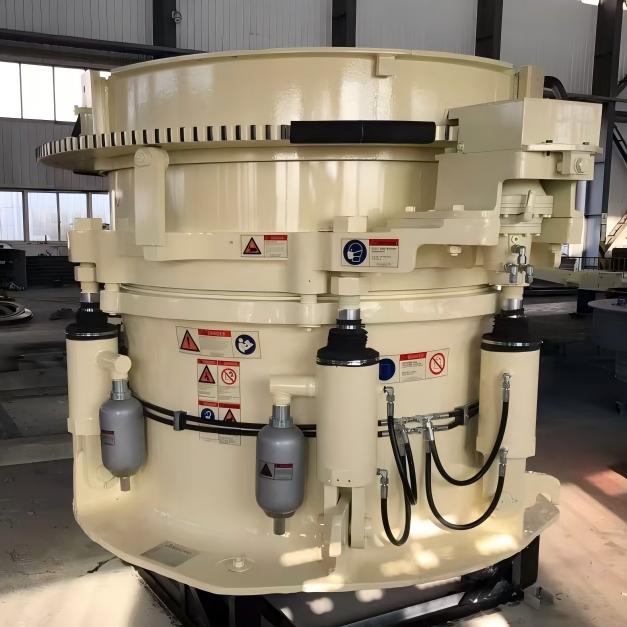

Hydraulic structure: Multi-cylinder design spreads the force evenly and works together with protection systems so the machine stays stable and safe even in tough conditions.
Smart control: A PLC system automatically adjusts parameters and reduces the need for constant manual work.
Durability and maintenance: High-strength precision parts and non-packing liners give longer life and make inspection and replacement easier.
Look at the material: Match the model to rock hardness, abrasiveness and moisture content.
Define the finished product: Decide the required size, shape and any special project standards.
Match capacity and the rest of the line: Consider hourly output, continuous running hours and the equipment before and after the crusher.
Custom service: Our team reviews feed size, site conditions and process flow to give an accurate model choice and capacity-optimisation plan.

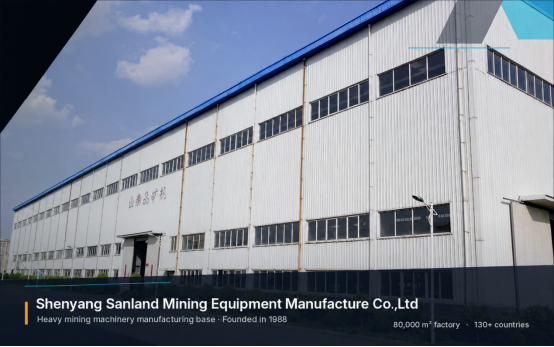

Founded in 1988 and based in Shenyang, China, Shenyang Sanland Mining Equipment Manufacture Co., Ltd. is a specialist manufacturer of crushing, screening, mineral processing and material handling equipment.
We operate production bases in both Shenyang and Kaiyuan, with facilities covering 95,000 m² and a team of more than 350 people. Everything is done in-house — casting, machining, welding, assembly and testing — so we can maintain strict quality control from raw materials right through to the finished equipment.
With over 30 years in the industry, Sanland has completed more than 110 crushing production lines around the world, ranging from 100 t/h to 3,000 t/h. We also provide fully customised equipment, plant upgrades, process design, installation, commissioning and ongoing technical support.
Our machines are working in mining, quarrying and aggregate projects across 60+ countries and regions, including Chile, Peru, Australia, Saudi Arabia, Russia and Southeast Asia. We’ve supplied equipment to major names such as BHP, Vale, CODELCO, Anglo American, ANSTEEL, Philex Mining, China Gold and Huaxin Cement.
To support our international customers more effectively, we run an overseas service centre in Ontario, Canada. It has local engineers on the ground and a 3,000 m² spare parts warehouse, so we can offer installation support, troubleshooting, spare parts and after-sales service whenever it’s needed.
Sanland holds ISO 14001 and ISO 45001 certifications, AAA Enterprise Credit Certification, and a number of invention patents. With solid manufacturing experience and a proven track record on global projects, we continue to deliver reliable equipment solutions for the mining and aggregate industries worldwide.
Location: Argentina Industry: Sand and aggregate Material: Basalt Design capacity: 400 t/h
To meet the customer’s need for high-quality basalt aggregate, Sanland supplied the HP cone crusher solution.
Several models including SH220 and SH315 were installed at different sites belonging to the same customer.
The machines kept steady output while the inter-particle crushing action improved product shape, meeting local standards for premium construction aggregate.
What parts should be prepared for spare parts when a machine is to be bought?
According to model and expected operating conditions, Sanland gives recommendations on wear parts. Customers can stock their main spare parts by their production cycle and also get further support from our global service network.
Installation and commissioning services are supplied on our machines?
Yes. Through countless overseas projects, the knowledge and experience of our technical team is able and ready to guide the installation, perform the commissioning on site, and train plant operators.
What is the principle of operation of Multi Cylinder hydraulic crusher that keeps the product size stable?
By monitoring the actual operation conditions of the crusher continuously using the automatic control system and making adjustments to the discharge opening by the production fluctuations, the device can be kept functioning continuously in its production mode.
What makes it different from other types of cone crushers?
Sanland’s HP hydrocone crusher works on a multicylinder hydraulic principle as well as interparticle crushing technology. There are significant differences, such as in the shape of the product produced, steady production, and the level of automation that make this crusher much better to use for those big-scale and high-quality production projects.
We are a professional manufacturer of mining machinery, specializing in the R&D and production of cone crushers, jaw crushers, and other mining crushing equipment. All equipment is manufactured and quality-controlled within our own production system, allowing us to directly address customer requirements and minimize intermediate links.
Yes. Our products can be supplied with internationally recognized certifications such as CE upon customer request. Our production processes strictly comply with quality management system requirements, ensuring that all equipment meets applicable safety and performance standards for export markets.
For standard models, we typically maintain a stable production cycle and complete delivery within 30 days. For customized configurations or special operating conditions, the lead time will be confirmed based on the specific solution. A clear production and delivery schedule will be provided upon order confirmation.
For complete machinery, the MOQ is generally one unit. For wear parts and accessories, the MOQ can be confirmed based on the specific model and requirements—please feel free to consult us for details.
Prior to shipment, all equipment undergoes anti-rust and anti-moisture treatment. We typically adopt wooden crates or reinforced packaging to ensure safe delivery during long-distance sea or land transportation.
We offer flexible shipping solutions including sea freight, land transportation, or multimodal transport, and we cooperate with customers or their designated freight forwarders to manage container loading and dispatch arrangements.
We generally support commonly used international payment methods such as T/T (telegraphic transfer). Specific payment terms can be negotiated based on the order value and cooperation circumstances.
Yes. We offer customized production and OEM services to meet specific customer requirements, including adjustments to equipment structure, technical parameters, and logo/branding customization.
Prior to order confirmation, we can provide product specifications, technical descriptions, application recommendations, and relevant images or documentation to help customers gain a thorough understanding of equipment performance and make informed procurement decisions.
