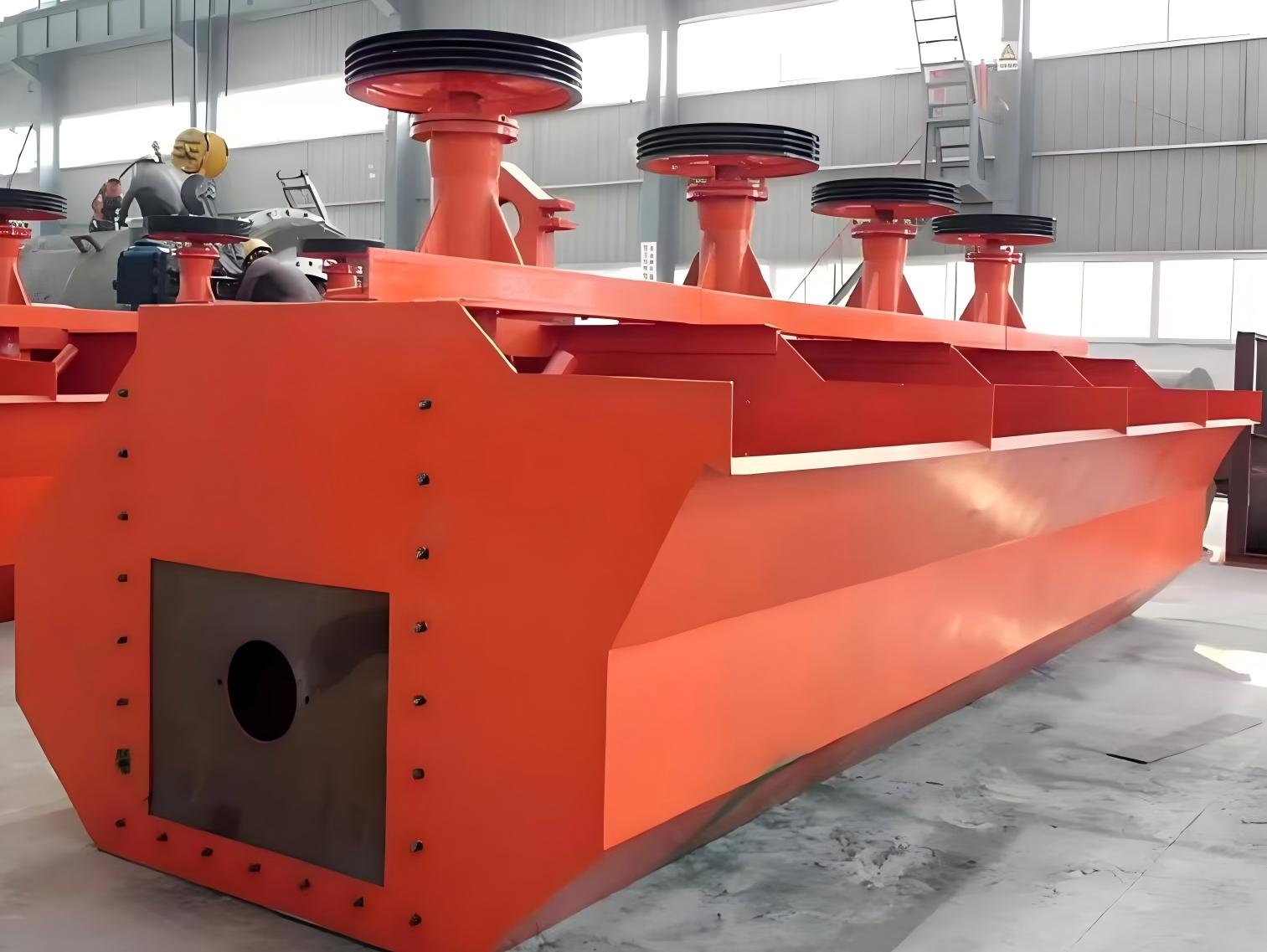

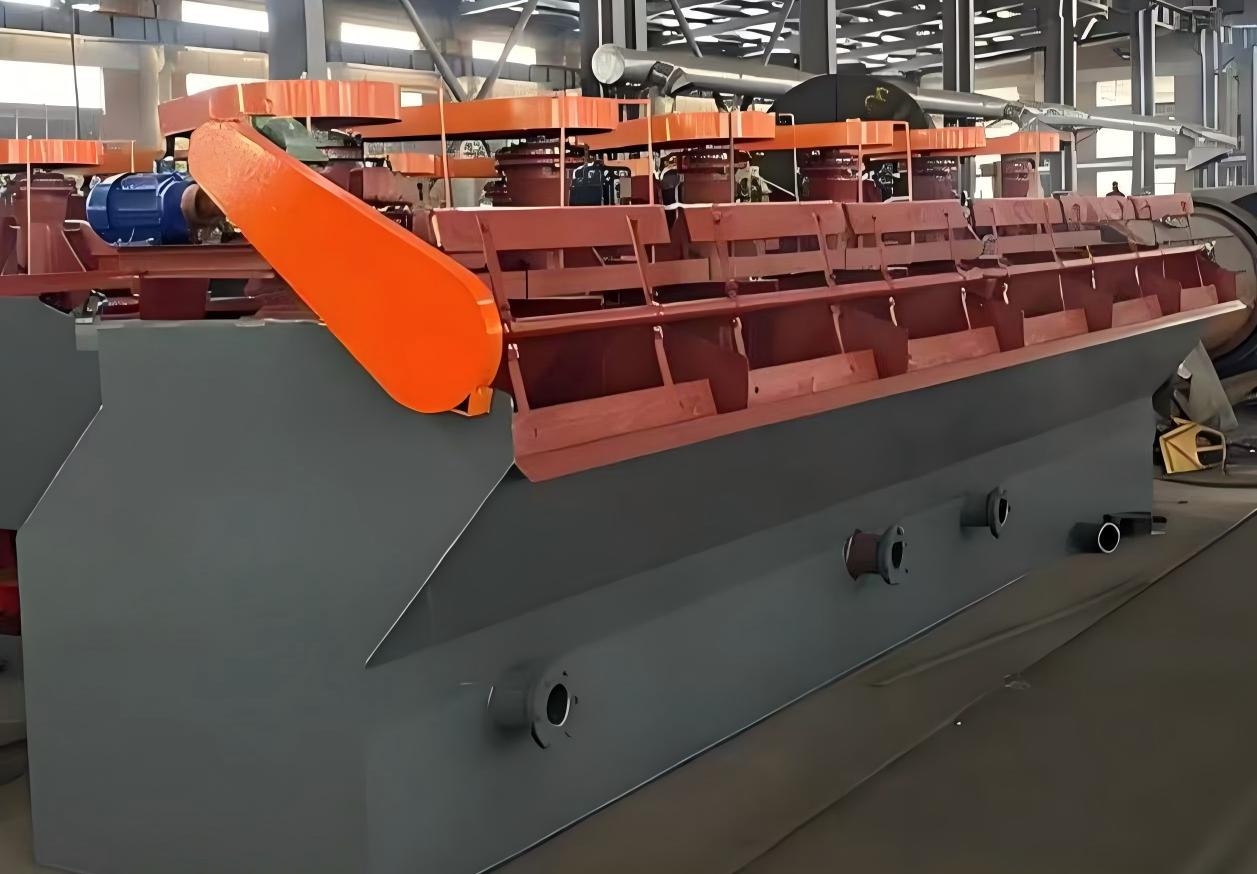

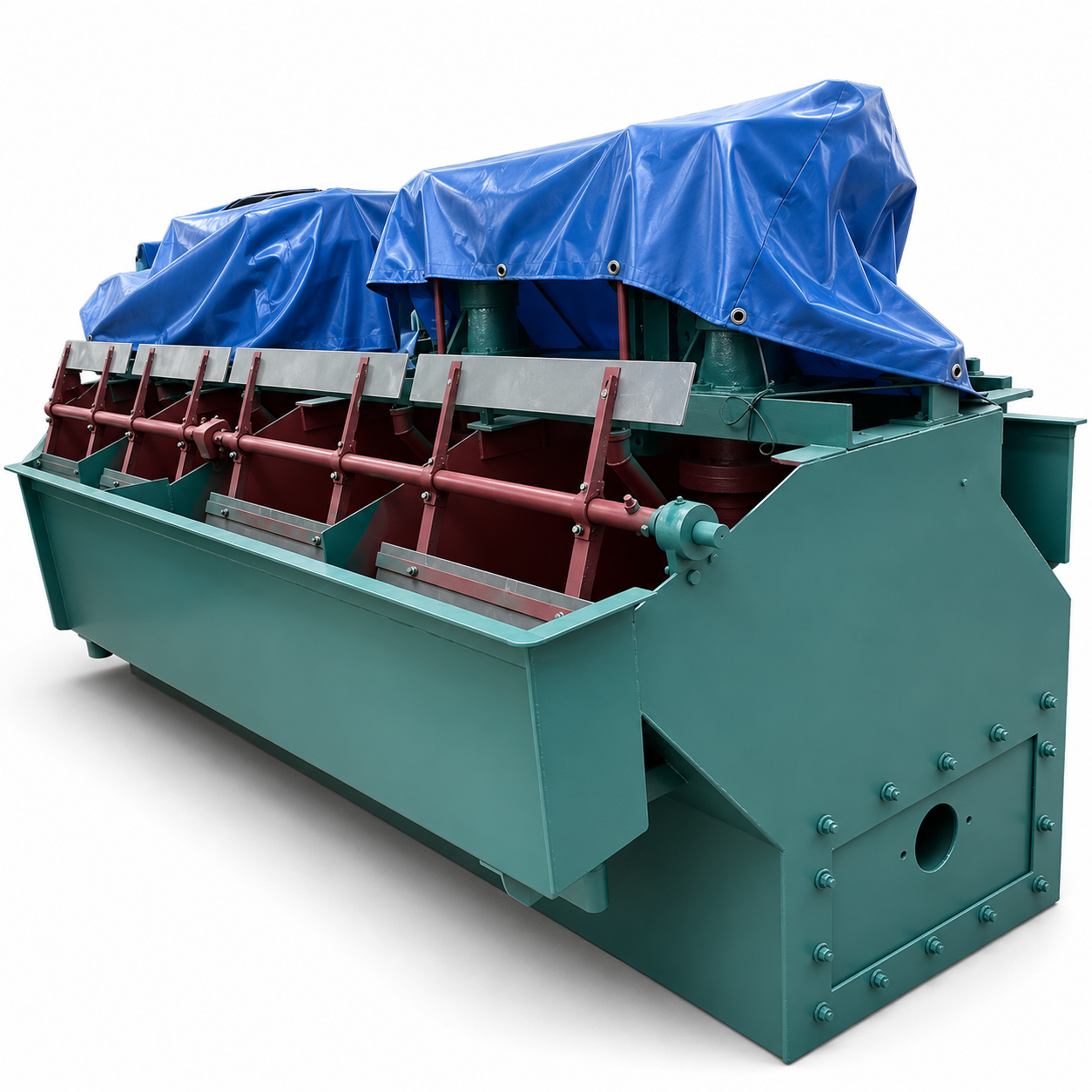

SF Floatation Cell An efficient mineral separation machine that improves concentrate recovery and helps reduce operating costs in the plant.
Tonnage: 0.08–26 m³/min Materials handled: non-ferrous and ferrous metals, coal, fluorite, talc, amongst other ore products
A flotation cell is a tool of separating minerals, which is dependent on the differential surface properties of the particles.
Besides the main process, a few reagents are mixed in, and these valuable minerals bond with air bubbles which then bring them to form a frothy concentrate surface together. The other waste products do not stick to anything, so these remain in the slurry, forming the tailings.
This piece of equipment has been applied extensively in metal ore processing plants for extraction of copper, lead-zinc, iron, manganese, non-ferrous and ferrous ores, etc. It has also been used for non-metallic mineral processing like purification of fluorite, graphite and talc as well as coal slurry flotation, mineral recovery from industrials, and comprehensive resource utilization projects, among other things.
Lack of Mineral Recovery: Fine, stable bubbles allow the minerals to come closer contact with the bubble and thereby decrease loss of the precious minerals.
Unstable Concentrate Quality: Uniform slurry mixing helps to achieve more consistent separation as well as concentrate quality.
High Energy Consumption: An optimized impeller design combined with the selection of the right drive enables energy saving on a ton basis.
Frequent Maintenance: Wear-resistant parts and easy replacement help reduce downtime and decrease maintenance spending.
Type | Model | Effective volume | Capacity | Main shaft | Scraper | Tank size L×W×H (m) | ||
Power (kW) | Speed (r/min) | Power (kW) | Speed (r/min) | |||||
XJK | XJK-0.35 | 0.35 | 0.18–0.4 | 1.5 | 483 | 1.1 | 25 | 0.7×0.7×0.7 |
XJK-0.62 | 0.62 | 0.3–0.9 | 3 | 400 | 1.1 | 25 | 0.9×0.82×0.85 | |
XJK-1.1 | 1.1 | 0.6–1.6 | 5.5 | 330 | 1.1 | 25 | 1.1×1.1×1.0 | |
XJK-2.8 | 2.8 | 1.5–3.5 | 11 | 280 | 1.1 | 25 | 1.75×1.6×1.1 | |
XJK-5.8 | 5.8 | 5–7 | 22 | 240 | 1.5 | 25 | 2.2×2.2×1.2 | |
SF | SF-0.37 | 0.37 | 0.2–0.4 | 1.5 | 386 | 1.1 | 25 | 0.7×0.7×0.75 |
SF-0.7 | 0.7 | 0.3–0.9 | 3 | 400 | 1.1 | 25 | 0.9×0.82×0.95 | |
SF-1.2 | 1.2 | 0.6–1.6 | 5.5 | 330 | 1.1 | 25 | 1.1×1.1×1.1 | |
SF-2.8 | 2.8 | 1.5–3.5 | 11 | 268 | 1.1 | 25 | 1.75×1.6×1.15 | |
SF-4 | 4 | 2–4 | 15 | 220 | 1.5 | 25 | 1.85×2.05×1.2 | |
SF-8 | 8 | 4–8 | 30 | 191 | 1.5 | 25 | 2.2×2.9×1.4 | |
SF-10 | 10 | 5–10 | 30 | 191 | 1.5 | 25 | 2.2×2.9×1.7 | |
SF-20 | 20 | 5–20 | 30×2 | 191 | 1.5 | 25 | 2.85×3.8×2.0 | |
Actual manufacturing conditions may pose these problems with typical equipments:
Inadequate mixing of the slurry causes reagents not adequately to reach the particles
Size of the bubbles varies leading to loss of valuable minerals
Flotation of coarse and fine particles is unstable, resulting in poor quality of the concentrate
Rapid wearing of parts increases the need of shutdowns for the repair work
The issues decrease mineral recovery and increase the labor and running costs.
With the SF Floatation Cell and SBF Floatation Cell, air is sucked in because the impeller creates a negative pressure. After the rotation of the impeller the air is shattered into small and evenly sized bubbles. This allows more chance for the mineral particles to grab these bubbles and hence the mineral recovery.
The well-designed impeller and stator allow the suspension in the slurry to become homogeneous so that the settled particles remain minimum, stable separation is ensured and that of a continuous operation is maintained.
Proper configuration of the power system enables the machine to deliver the required capacity as well the lower the energy consumed ton-wise, which in the run results cutting plants operation and running costs.
Important components subject to abrasion are produced from durable materials besides, it is quite easy to replace impeller and stator parts when needed; which in this way facilitates easy maintenance procedure.
The electric motor causes rotation of impellers, generating a circulatory movement of the suspension.
Impeller spinning at a high speed results in negative pressure that draws into the mixture of slurry and air and causes the air to be divided uniformly into very tiny bubbles.
After the reagents are dosed, the main sequence of the process is as follows:
Valuable mineral particles cling to the bubbles
Mineralized bubbles float up to form a frothy layer
Froth is scraped off as concentrate material
Tailing i.e., the remaining slurry is sent out of the plant
With changing the slurry conditions and the machine settings, different materials can be separated efficiently.
As you may well know, each mine has a different set of ore physical properties to deal with, a different target for the fineness of the grinding, and, of course, a unique production targets. Sanland designs custom flotation solutions taking into account the following parameters:
Ore character.
Required capacity.
Quality targets of concentrate.
Plant layout.
Our service involves:
Choosing the appropriate cell model
Optimum number and type of cell configuration for the flotation process
Designing optimized impeller and stator
Determining the suitable flotation flowsheet
Founded in Shenyang, China in 1988, Sanland has built its reputation on manufacturing high-quality crushing, screening, mineral processing and material handling equipment.
Our two factories in Shenyang and Kaiyuan total 95,000 m² and employ more than 350 people. By keeping casting, machining, welding, assembly and testing entirely under our own roof, we achieve consistent quality control from the first piece of material to the final machine.
In more than 30 years we have supplied over 110 complete crushing production lines worldwide, ranging from 100 t/h to 3,000 t/h. Customers also rely on us for tailor-made equipment, plant upgrades, process engineering, installation, commissioning and long-term technical support.
Our machines are in daily use across mining, quarrying and aggregate sites in more than 60 countries and regions, including Chile, Peru, Australia, Saudi Arabia, Russia and Southeast Asia. We have delivered equipment to companies such as BHP, Vale, CODELCO, Anglo American, ANSTEEL, Philex Mining, China Gold and Huaxin Cement.
Sanland offers comprehensive technical assistance starting from the pre-sales phase, such as process analysis and equipment recommendation, until the delivery phase, where we provide installation assistance, training of the operators, after-sales service, spare parts supply, and, if required, onsite and remote technical support. Through the Canadian office and a global support team, we are able to cater to the clients worldwide through onsite services, technical support or parts supplies according to the local conditions and needs.
Copper ore concentrating plant located in Bolivia. Industry: Copper concentrator Location of the Plant: Bolivia Ore type: Copper-sulphide
The company had low production because of the varying quality of the feed and weak recovery rate. Sanland supplied SF Floatation Cell and SYF Floatation Cell machines customized to the particular slurry behavior of that area and optimized the flotation flowsheet.
Data from operations displayed:
Average power for each cell decreased by 20 percent.
Higher copper recovery of about 7 percent is realized
Powersource overall decreased to 18 – 30 percent
The equipment helped the plant make better use of the resource and ease production pressure.
Q: Is the SF Floatation Cell suitable for mining low-grade ores?
A. The answer is "yes. By improving the movement and distribution of the mineral suspension to the cell, our cells allow mining companies to recover more of the valuable minerals, even from very low-grade ores. But the performance depends on such factors as the type of the ore, the reagents, and the processing conditions that a mine adopts.
Q: What is the warranty period for an entire unit of machines and how long will it take to get the wear parts delivered?
A. The entire machine is under warranty for a duration of one year and the stock for common wear components like impellers and stators that will be used for the wear parts is maintained in the plant. Normally, these items can be delivered in three days' time.
Q: Could Sanland design the full flotation system?
Certainly. In the context of our long experience in designing equipment models and matching them to production requirements and mineral characteristics, our main point in supplying you with a complete solution would be that of recommending to you models and layout designs that will best suit your particular situation.
Q: Will there be technical assistance available after delivery of the equipment?
We deliver not only equipment but installation help at the site, commissioning assistance, training of the team and remote technical consultation and support after-sales, etc.
To summarize, with its wide range of flotation machines from Sanland such as SF Floatation Cell, SBF Floatation Cell, SYF Floatation Cell, SCF Floatation Cell, Air Inflation Cell and the Flotation Cell Series, a processing plant can significantly increase the recovery rates of the target mineral(s) without a significant trade-off in energy usage and/or in maintenance expenses.
We are a professional manufacturer of mining machinery, specializing in the R&D and production of cone crushers, jaw crushers, and other mining crushing equipment. All equipment is manufactured and quality-controlled within our own production system, allowing us to directly address customer requirements and minimize intermediate links.
Yes. Our products can be supplied with internationally recognized certifications such as CE upon customer request. Our production processes strictly comply with quality management system requirements, ensuring that all equipment meets applicable safety and performance standards for export markets.
For standard models, we typically maintain a stable production cycle and complete delivery within 30 days. For customized configurations or special operating conditions, the lead time will be confirmed based on the specific solution. A clear production and delivery schedule will be provided upon order confirmation.
For complete machinery, the MOQ is generally one unit. For wear parts and accessories, the MOQ can be confirmed based on the specific model and requirements—please feel free to consult us for details.
Prior to shipment, all equipment undergoes anti-rust and anti-moisture treatment. We typically adopt wooden crates or reinforced packaging to ensure safe delivery during long-distance sea or land transportation.
We offer flexible shipping solutions including sea freight, land transportation, or multimodal transport, and we cooperate with customers or their designated freight forwarders to manage container loading and dispatch arrangements.
We generally support commonly used international payment methods such as T/T (telegraphic transfer). Specific payment terms can be negotiated based on the order value and cooperation circumstances.
Yes. We offer customized production and OEM services to meet specific customer requirements, including adjustments to equipment structure, technical parameters, and logo/branding customization.
Prior to order confirmation, we can provide product specifications, technical descriptions, application recommendations, and relevant images or documentation to help customers gain a thorough understanding of equipment performance and make informed procurement decisions.
