Feed size: 0–25 mm Handling capacity: 5–120 t/h (depending on model and process conditions) Suitable materials: gold ore, iron ore, copper ore, quartz, glass raw materials, cement and other metal and non-metal minerals

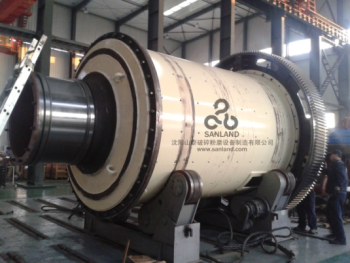

The Wet grid ball mill is a wet grinding machine widely used in mining mineral processing. As the drum rotates, steel balls and ore move together. Impact and grinding action further reduce the size of the coarse particles. A grate plate at the discharge end forces the slurry out in a controlled way.
This equipment is commonly used after crushing to grind the ore finer. It is one of the standard grinding machines in metal ore processing, building materials and chemical industries.
Traditional grinding operations often face unstable particle size control, fast liner wear, strong start-up impact and frequent maintenance of drive parts. These problems can cause production fluctuations and affect the next separation stages. A stable, durable and easy-to-maintain ball mill is key to continuous plant operation.
Targeted equipment improvements – The MQS Wet grid type ball mill optimizes the internal structure. The grate plate discharges qualified slurry quickly, strengthens grinding effect and keeps grinding fineness under better control.
Complete solution support – Combined with ore characteristics and capacity targets, we provide grindability analysis, process planning and model selection as a one-stop service.
Full-cycle technical support – Installation, commissioning and operator training are included to help the whole grinding system run steadily for a long time.
Model | Cylinder diameter | Shell length | Effective volume | Max ball load | Speed | Output | Main motor | Overall dimensions (m) | Total weight | |||||
Model | Power | Speed | Voltage | Length | Width | Height | ||||||||

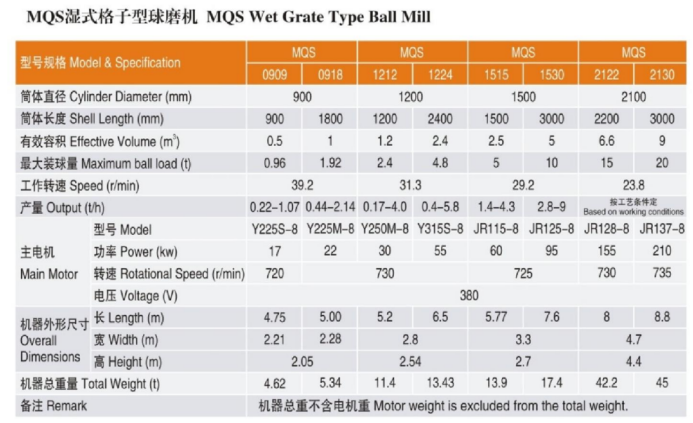

MQS 0909 | 900 | 900 | 0.5 | 0.96 | 39.2 | 0.22–1.07 | Y225S-8 | 17 | 720 | 380 | 4.75 | 2.21 | 2.05 | 4.62 |
MQS 0918 | 900 | 1800 | 1 | 1.92 | — | 0.44–2.14 | Y225M-8 | 22 | 730 | 380 | 5 | 2.28 | — | 5.34 |
MQS 1212 | 1200 | 1200 | 1.2 | 2.4 | 31.3 | 0.17–4.0 | Y250M-8 | 30 | — | 380 | 5.2 | 2.8 | 2.54 | 11.4 |
MQS 1224 | 1200 | 2400 | 2.4 | 4.8 | — | 0.4–5.8 | Y315S-8 | 55 | — | 380 | 6.5 | — | — | 13.43 |
MQS 1515 | 1500 | 1500 | 2.5 | 5 | 29.2 | 1.4–4.3 | JR115-8 | 60 | 725 | 380 | 5.77 | 3.3 | 2.7 | 13.9 |
MQS 1530 | 1500 | 3000 | 5 | 10 | — | 2.8–9 | JR125-8 | 95 | — | 380 | 7.6 | — | — | 17.4 |
MQS 2122 | 2100 | 2200 | 6.6 | 15 | 23.8 | Determined according to process conditions | JR128-8 | 155 | 730 | 380 | 8 | 4.7 | 4.4 | 42.2 |
MQS 2130 | 2100 | 3000 | 9 | 20 | — | JR137-8 | 210 | 735 | 380 | 8.8 | — | — | 45 | |
Model | Cylinder diameter | Shell length | Effective volume | Max ball load | Speed | Output | Main motor | Overall dimensions (m) | Total weight | |||||
Model | Power | Speed | Voltage | Length | Width | Height | ||||||||

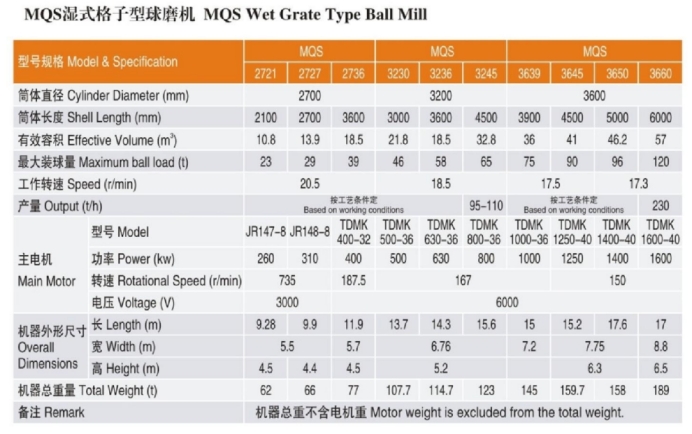

MQS 2721 | 2700 | 2100 | 10.8 | 23 | 20.5 | Determined according to process conditions | JR147-8 | 260 | 735 | 3000 | 9.28 | 5.5 | 4.5 | 62 |
MQS 2727 | 2700 | 2700 | 13.9 | 29 | — | JR148-8 | 310 | — | 3000 | 9.9 | — | 4.4 | 66 | |
MQS 2736 | 2700 | 3600 | 18.5 | 39 | — | TDMK 400-32 | 400 | 187.5 | 6000 | 11.9 | 5.7 | 4.5 | 77 | |
MQS 3230 | 3200 | 3000 | 21.8 | 46 | 18.5 | — | TDMK 500-36 | 500 | 167 | 6000 | 13.7 | 6.76 | 5.2 | 107.7 |
MQS 3236 | 3200 | 3600 | 18.5 | 58 | — | — | TDMK 630-36 | 630 | — | 6000 | 14.3 | — | — | 114.7 |
MQS 3245 | 3200 | 4500 | 32.8 | 65 | — | 95–110 | TDMK 800-36 | 800 | — | 6000 | 15.6 | — | — | 123 |
MQS 3639 | 3600 | 3900 | 36 | 75 | 17.5 | Determined according to process conditions | TDMK 1000-36 | 1000 | — | 6000 | 15 | 7.2 | — | 145 |
MQS 3645 | 3600 | 4500 | 41 | 90 | — | TDMK 250-40 | 1250 | — | 6000 | 15.2 | 7.75 | 6.3 | 159.7 | |
MQS 3650 | 3600 | 5000 | 46.2 | 96 | 17.3 | — | TDMK 1400-40 | 1400 | — | 6000 | 17.6 | — | — | 158 |
MQS 3660 | 3600 | 6000 | 57 | 120 | — | 230 | TDMK 1600-40 | 1600 | — | 6000 | 17 | 8.8 | 6.5 | 189 |
The Wet Type Grate Ball Mill uses a grate plate discharge structure. Finely ground slurry leaves the mill in time, which reduces over-grinding and helps keep the grinding density stable.
The machine has a proven drive system that can run continuously for long periods, making it suitable for large-scale grinding work in concentrators.
Different liner materials can be chosen according to ore hardness, abrasiveness and production requirements, which extends the service life of the equipment.
The large gear uses centralized lubrication. This cuts down the need for frequent manual maintenance and improves the reliability of the drive system.
Ore hardness, liberation size and production targets differ from mine to mine, so the ball mill configuration needs to match the actual site conditions. Sanland evaluates ore properties, processing capacity, grinding fineness and plant layout, then provides model selection, liner material recommendations, grinding flow design and supporting equipment plans.
The MQS Grate Ball Mill can be fitted with an automatic control system on request. It monitors running and lubrication status in real time, adjusts process parameters dynamically and sends fault alarms, making it easier for operators to find problems early and reduce unplanned downtime.
To keep the Wet grid ball mill running reliably for a long time:
Regularly check liner wear and arrange replacement according to the wear level.
Keep the lubrication system working properly and check oil temperature and pressure.
Inspect the meshing condition of the large and small gears.
Control the feed rate and avoid long-term overload.
Use the slow-drive device during maintenance to improve safety.
Founded in 1988 and based in Shenyang, China, Shenyang Sanland Mining Equipment Manufacture Co., Ltd. is a professional manufacturer of crushing, screening, mineral processing and material handling equipment.
With production bases in Shenyang and Kaiyuan, Sanland operates facilities covering 95,000 m² with more than 350 employees. The company has complete manufacturing capabilities, including casting, machining, welding, assembly and testing, allowing strict quality control from raw materials to finished equipment.
With over 30 years of industry experience, Sanland has completed more than 110 crushing production lines worldwide, with capacities ranging from 100 t/h to 3,000 t/h. The company also provides customized equipment manufacturing, plant upgrading, process design, installation, commissioning and technical support.
Sanland equipment has been supplied to mining, quarrying and aggregate projects in 60+ countries and regions, including Chile, Peru, Australia, Saudi Arabia, Russia and Southeast Asia. Our projects have supported customers such as BHP, Vale, CODELCO, Anglo American, ANSTEEL, Philex Mining, China Gold and Huaxin Cement.
To better serve global customers, Sanland operates an overseas service center in Ontario, Canada, with local engineers and a 3,000 m² spare parts warehouse, providing installation support, troubleshooting, spare parts supply and after-sales service.
Sanland is certified with ISO 14001, ISO 45001, AAA Enterprise Credit Certification, and holds multiple invention patents. With strong manufacturing experience and global project expertise, Sanland continues to provide reliable equipment solutions for mining and aggregate industries worldwide.
Sanland provides overseas customers with supporting services throughout the project cycle. In the early stage we complete professional model selection based on ore conditions and production targets. During project implementation we offer installation guidance, equipment commissioning and practical operator training. After start-up we continue to provide remote technical assistance, spare-parts supply and on-site service. A global overseas service network helps keep projects running steadily for the long term.
For large grinding equipment export needs we prepare export protective packaging, coordinate transport plans, track shipment progress in real time and supply spare parts at the same time. According to project requirements we can deliver single machines or complete integrated grinding system solutions.

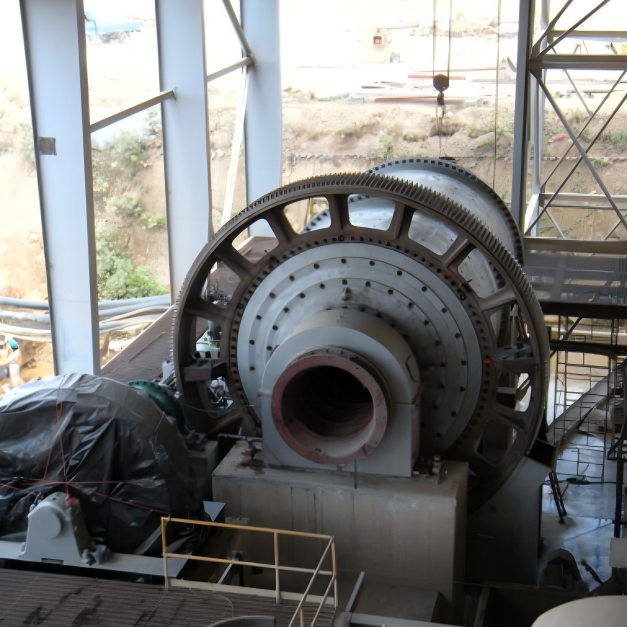

The project is located at an iron ore concentrator in Inner Mongolia. The raw material is iron ore.
To meet the customer’s need for stable grinding conditions, Sanland supplied an MQS3245 Wet Grate Ball Mill.
Since start-up the machine has run smoothly, the discharge size meets process standards, and it continues to support stable production of the concentrator line. The customer has given high recognition.
Q: Which ores is the MQS Wet grid type ball mill suitable for? A: It is suitable for wet grinding of gold ore, iron ore, copper ore, as well as quartz, glass raw materials and many other materials.
Q: Does Sanland provide installation and commissioning service? A: Yes. Sanland has experience with overseas projects and can provide installation guidance, commissioning support and on-site training.

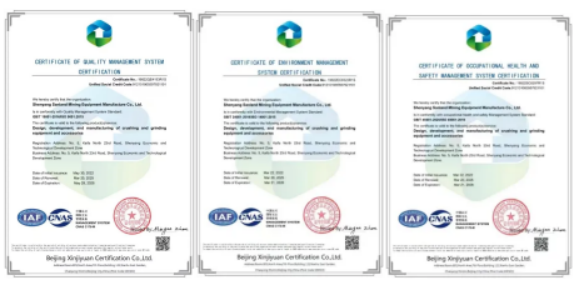

Q: What certifications does the company hold? A: The company holds ISO 14001 Environmental Management System Certification, ISO 45001 Occupational Health and Safety Management System Certification, multiple AAA-level enterprise credit certifications, invention patents and intellectual property certificates. Additional certifications can be provided according to market requirements.
The MQS Wet grid type ball mill, Wet grid ball mill, Wet Type Grate Ball Mill, Wet Grate Ball Mill and MQS Grate Ball Mill range gives plants a practical way to improve fine grinding results, keep the process stable and support continuous mineral processing production.
We are a professional manufacturer of mining machinery, specializing in the R&D and production of cone crushers, jaw crushers, and other mining crushing equipment. All equipment is manufactured and quality-controlled within our own production system, allowing us to directly address customer requirements and minimize intermediate links.

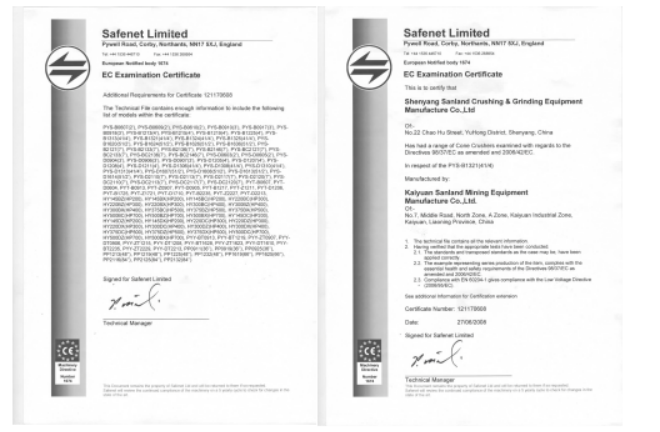

Yes. Our products can be supplied with internationally recognized certifications such as CE upon customer request. Our production processes strictly comply with quality management system requirements, ensuring that all equipment meets applicable safety and performance standards for export markets.
