The hard rock crushing plants that handle different materials such as crushed granite, basalt, quartzite, and other highly hard ores, usually have a number of operational difficulties in common. Here are some of them.
Problems in overload protection systems which are slow in reaction cause unexpected equipment damages.
Hydraulic cone crushers may develop problems with oil leakage and require regular check-ups which in turn lead to long down times in between.
A consistent change in the shape and size of the products may also result in a decrease in quality while requiring much more work for circulating load.
High-cost spare parts; delivery at the last minute and very slow repair process all of these factors interrupt the production line at the same time.
These factors raise the operational cost of crushing a lot and also slow down the overall productivity of the crushing plant.
If a quarry owner or a mine operator wants to keep things going and limit his production cost over time, he can benefit most by adopting a proven and solid crushing line.

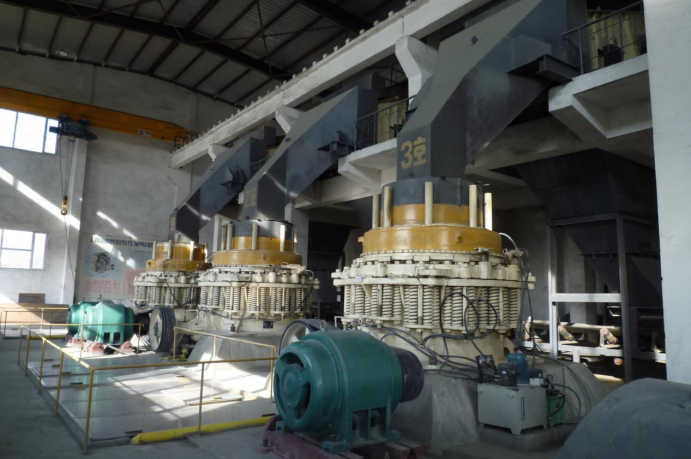

The PYT Series Spring Cone Crushing equipment was developed using a time-tested and robust mechanism of spring-based overload protection system. This type of system is also very commonly found in mining and stone production facilities around the world.
When non-crushable object gets into the crusher chamber the spring is compressed automatically allowing the support sleeve to rise and create the new discharge space in the crusher chamber. Once the object is passed, the spring goes back to its original position and the crusher becomes active again.
Compared with the hydraulic ones, this design is simpler and less prone to the issues of oil leakage, difficult fluid servicing, and high service demands.
The Spring-Type Cone crusher is particularly recommended for the crushing of hard and semi-hard materials at a medium or fine particle size level such as granite, basalt, quartzite, iron ore, and various other minerals.
The dependable mechanical nature of the machine makes it an excellent choice for limestone production lines that require regular and uninterrupted performance while being able to perform maintenance operations in an easy way.
Model | Cone Ø | Feed opening | Max feed lump | Setting range | Capacity | Eccentric speed | |
STPYT · 900 mm cone | |||||||
STPYT-B 0913 | 900 | 135 | 115 | 15–50 | 50–90 | 333 | |
STPYT-Z 0907 | 900 | 70 | 60 | 5–20 | 20–65 | 333 | |
STPYT-D 0305 | 900 | 50 | 40 | 3–13 | 15–50 | 333 | |
⛏️ STPYT · 1200 mm cone | |||||||
STPYT-B 1217 | 1200 | 170 | 145 | 20–50 | 110–168 | 300 | |
STPYT-Z 1211 | 1200 | 115 | 100 | 8–25 | 42–135 | 300 | |
STPYT-D 1206 | 1200 | 60 | 50 | 3–15 | 18–105 | 300 | |
⛰️ STPYT · 1750 mm cone | |||||||
STPYT-B 1750 | 1750 | 250 | 215 | 25–60 | 280–430 | 245 | |
STPYT-Z 1750 | 1750 | 215 | 185 | 10–30 | 115–320 | 245 | |
STPYT-D 1750 | 1750 | 100 | 85 | 5–15 | 75–230 | 245 | |
⛰️ STPYT · 2200 mm cone | |||||||
STPYT-B 2200 | 2200 | 350 | 300 | 30–60 | 590–1000 | 220 | |
STPYT-Z 2200 | 2200 | 275 | 230 | 10–30 | 200–580 | 220 | |
STPYT-D 2200 | 2200 | 130 | 100 | 5–15 | 120–340 | 220 | |
The Stone Cone Crusher is mainly built keeping reliability, high productivity and a simple-to-operate structure in mind.
1. High utilization rate
Cutting, discharges, and feeding operations are all going smoothly and in coordination. The crusher is able to carry out such tasks without being stopped or interrupted and thus, it brings the efficiency of production process up to the highest level. That is why this kind of machine has been widely accepted and adopted all over the world.
2. Strong Crushing Capability.
The Crusher works by combining two different mechanisms (compressive and shear) that break the rocks. It not only reduces the resistance of the crushing but also improves energy utilization, thereby, getting better crush results.
3. Great Shape of the Final Product.
The optimized crushing chamber is the main reason behind the promotion of layered crushing.
As a result, the products mainly consist of cubicle particles with very attractive quality and a narrow size distribution.
Liner wear will also be more uniformly distributed which contributes in the prolong of the service lifespan and reducing the number of replacements.
4. Simplified Structure with Facilitated Maintenance.
Major components like drives, crushing chamber, and the adjustment mechanism, and lubrication system are very well laid out and visible.
The equipment is not only very simple and user-friendly for a machine operator but also makes it easy and fast to check and maintain, thus minimizing the time and effort needed to perform maintenance work.
Sanland was founded in 1988 in Shenyang, China, and has specialised in crushing, screening, mineral processing and material handling equipment ever since.

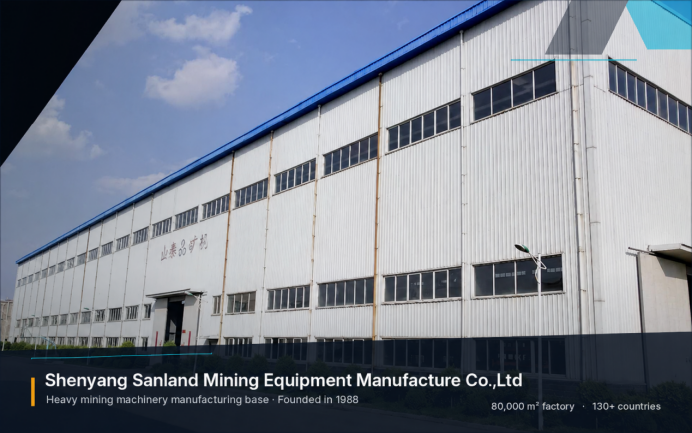

Our production bases in Shenyang and Kaiyuan cover a combined 95,000 m² and employ more than 350 people. Because every step — casting, machining, welding, assembly and testing — is carried out in-house, we maintain strict quality control from the raw material stage right through to the finished machine.
With more than 30 years of experience behind us, we have delivered over 110 crushing production lines worldwide, with capacities from 100 to 3,000 tonnes per hour. We also design and supply custom-built equipment, carry out plant upgrades, provide process engineering, and handle installation, commissioning and ongoing technical support.
Today our equipment operates in mining, quarrying and aggregate projects in more than 60 countries and regions, including Chile, Peru, Australia, Saudi Arabia, Russia and Southeast Asia. We have worked with major operators such as BHP, Vale, CODELCO, Anglo American, ANSTEEL, Philex Mining, China Gold and Huaxin Cement.
To support customers internationally we run a service centre in Ontario, Canada. Local engineers and a 3,000 m² spare-parts warehouse allow us to provide installation assistance, fast troubleshooting, parts supply and after-sales service wherever needed.
Sanland adheres to a strict quality management system for the whole production cycle.
Primary certificates and qualifications held by Sanland are:
ISO 14001 Environmental Management System Certificate
ISO 45001 Occupational Health and Safety Management System Certificate
Several AAA-level enterprise credit certificates
Invention patents as well as patent and other intellectual property certificates
Customers can also be assisted with providing other certifications required for projects or other customer specific certifications.
Long-term equipment reliability depends not only on product quality but also on professional service.
Sanland provides comprehensive after-sales support, including:
Spare Parts Supply
Common wearing parts are normally kept in stock.
Under normal conditions, spare parts can be delivered within 7–14 days, helping customers reduce waiting time and avoid unnecessary production interruptions.
Technical Support
Sanland provides:
Remote technical assistance
On-site engineering support
Emergency repair services
Equipment operation guidance
Our service team helps customers solve problems throughout the equipment’s long operating life and ensures the crushing system continues to perform efficiently for many years.
Background
In Indonesia, a basalt crushing plant required upgrading the secondary crushing stage. The plant’s target capacity was about 200 tons/hour.
Due to high basalt hardness and varying moisture, the customer was repeatedly confronted with equipment blockages and unexplained shut downs of the original facility.
The customer opted for Sanland’s Symons Cone Crusher and the customer worked on making adjustments based on the existing site conditions in parallel to this major upgrade move.
The plant could carry on its work smoothly even against the challenge of uneven feeds.
Besides meeting the specifications of the end customer, the rate of qualification of final product was kept around 92%, and the lifetime of liner was doubled with respect to the older equipments’ performance.
Feedback of customer
Risk of unplanned downtime was drastically curbed.
Operating condition became far more stable day after day.
Over the whole spectrum of expenses, the operating cost was lowered as much as 8%.
This case of success is an evidence that the Cone Crusher is suitable for a quarry when there is the challenge of breaking hard and grinding materials.
1. How is the discharge opening adjusted?
The discharge opening is adjusted by rotating the adjustment sleeve and changing the gap between the moving cone and the fixed cone.
This allows operators to control the final product size according to different production requirements.
2. How often should the springs be replaced?
The crusher uses multiple springs working together to provide overload protection.
Under normal operating and maintenance conditions, the spring components can usually operate for many years. In many cases, their service life can approach 10 years, depending on operating conditions and maintenance practices.
We are a professional manufacturer of mining machinery, specializing in the R&D and production of cone crushers, jaw crushers, and other mining crushing equipment. All equipment is manufactured and quality-controlled within our own production system, allowing us to directly address customer requirements and minimize intermediate links.
Yes. Our products can be supplied with internationally recognized certifications such as CE upon customer request. Our production processes strictly comply with quality management system requirements, ensuring that all equipment meets applicable safety and performance standards for export markets.
For standard models, we typically maintain a stable production cycle and complete delivery within 30 days. For customized configurations or special operating conditions, the lead time will be confirmed based on the specific solution. A clear production and delivery schedule will be provided upon order confirmation.
For complete machinery, the MOQ is generally one unit. For wear parts and accessories, the MOQ can be confirmed based on the specific model and requirements—please feel free to consult us for details.
Prior to shipment, all equipment undergoes anti-rust and anti-moisture treatment. We typically adopt wooden crates or reinforced packaging to ensure safe delivery during long-distance sea or land transportation.
We offer flexible shipping solutions including sea freight, land transportation, or multimodal transport, and we cooperate with customers or their designated freight forwarders to manage container loading and dispatch arrangements.
We generally support commonly used international payment methods such as T/T (telegraphic transfer). Specific payment terms can be negotiated based on the order value and cooperation circumstances.
Yes. We offer customized production and OEM services to meet specific customer requirements, including adjustments to equipment structure, technical parameters, and logo/branding customization.
Prior to order confirmation, we can provide product specifications, technical descriptions, application recommendations, and relevant images or documentation to help customers gain a thorough understanding of equipment performance and make informed procurement decisions.
