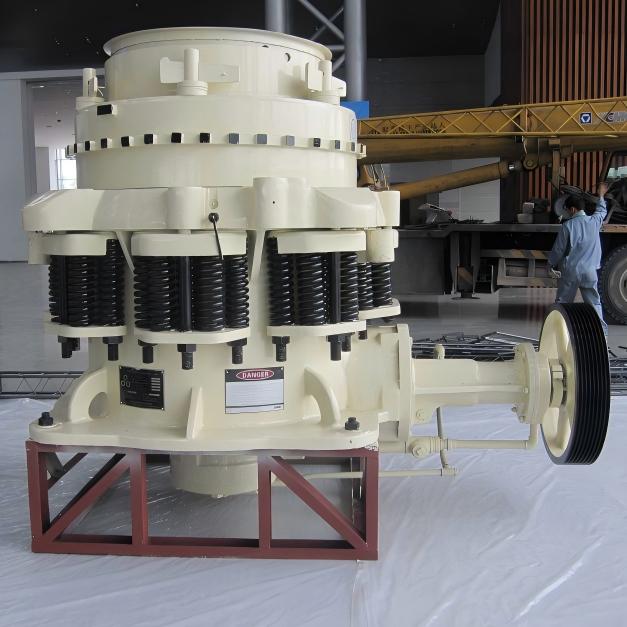

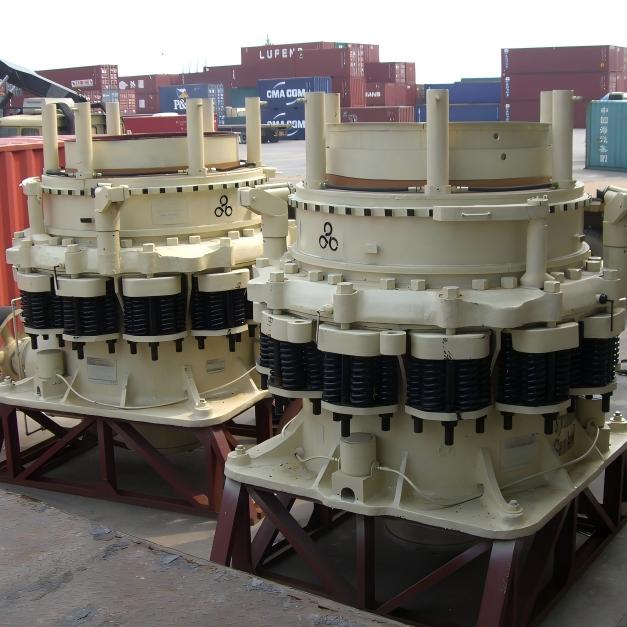

Upgraded SS Cone Crusher: A Practical Alternative to Conventional Spring Cone Crushers The unit is compatible with existing foundations and can shift the control to hydraulic quite easily.
Feed size: 0–400 mm Handling capacity: 20–1900 t/h Materials fed: granite, basalt, quartzite, iron ore, diabase and several metal and non-metal ores.
Traditional cone crusher lines often face long manual adjustment times for the discharge setting, lack of quick pressure relif when tramp metal enters, heavy maintenance work and limited automation. For plants already in production, most customers want to upgrade without major changes to the existing foundations.
The SS cone crusher is designed for these existing lines. Hydraulic control replaces the old mechanical adjustment. With hydraulic discharge setting, overload protection, automatic monitoring and an optimized crushing chamber, the machine reduces manual work, lowers the risk of sudden stoppages, keeps product size more consistent and extends continuous running time.

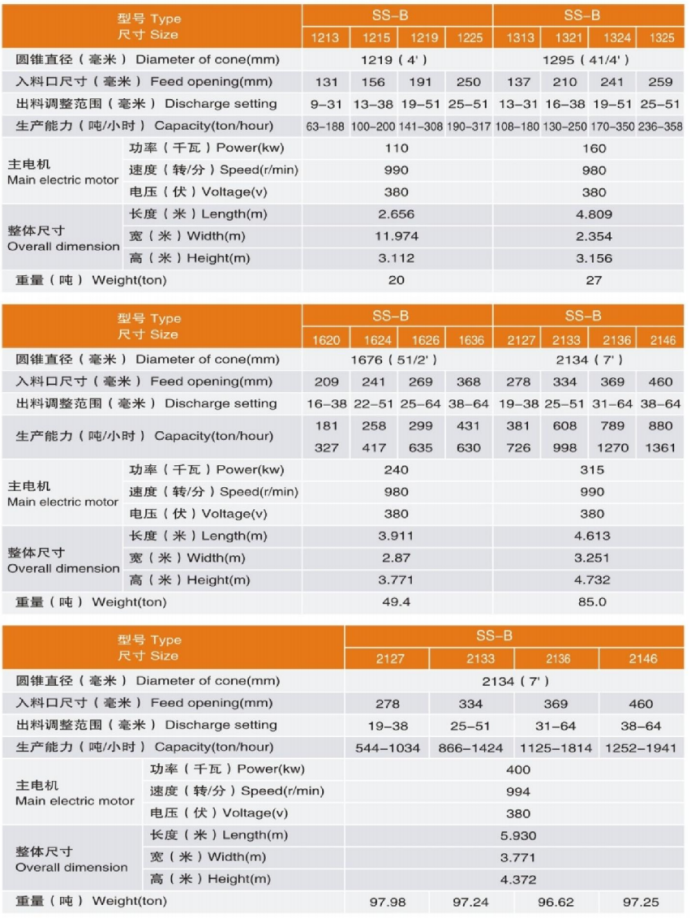

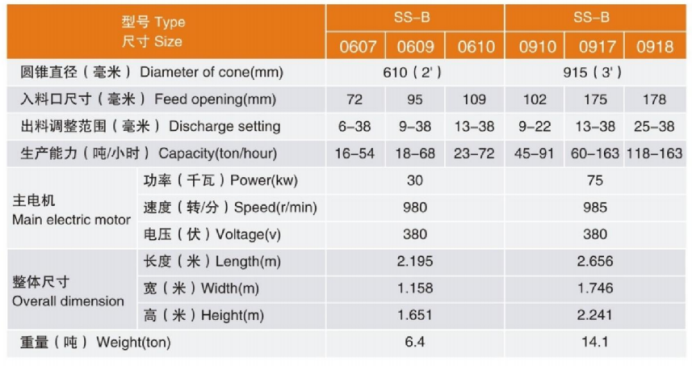

Model | Cone diameter | Feed opening | Discharge setting | Capacity | Main electric motor | ||
|
|
|
|
| Power | ||
Small Models | |||||||
SS-B 607 | 610 (2') | 72 | 6–38 | 16–54 | 30 | ||
SS-B 609 | 610 (2') | 95 | 9–38 | 18–68 | 30 | ||
SS-B 610 | 610 (2') | 109 | 13–38 | 23–72 | 30 | ||
SS-B 910 | 915 (3') | 102 | 46287 | 45–91 | 75 | ||
SS-B 917 | 915 (3') | 175 | 13–38 | 60–163 | 75 | ||
SS-B 918 | 915 (3') | 178 | 25–38 | 118–163 | 75 | ||
Medium Models | |||||||
SS-B 1213 | 1219 (4') | 131 | 9–31 | 63–188 | 110 | ||
SS-B 1215 | 1219 (4') | 156 | 13–38 | 100–200 | 110 | ||
SS-B 1219 | 1219 (4') | 191 | 19–51 | 141–308 | 110 | ||
SS-B 1225 | 1219 (4') | 250 | 25–51 | 190–317 | 110 | ||
SS-B 1313 | 1295 (4'1/4") | 137 | 13–31 | 108–180 | 160 | ||
SS-B 1321 | 1295 (4'1/4") | 210 | 16–38 | 130–250 | 160 | ||
SS-B 1324 | 1295 (4'1/4") | 241 | 19–51 | 170–350 | 160 | ||
SS-B 1325 | 1295 (4'1/4") | 259 | 25–51 | 236–350 | 160 | ||
Large Models | |||||||
SS-B 1620 | 1676 (5'1/2") | 209 | 16–38 | 181–327 | 240 | ||
SS-B 1624 | 1676 (5'1/2") | 241 | 16–64 | 258–417 | 240 | ||
SS-B 1626 | 1676 (5'1/2") | 269 | 16–98 | 299–635 | 240 | ||
SS-B 1636 | 1676 (5'1/2") | 368 | 38–64 | 431–630 | 240 | ||
SS-B 2127 | 2134 (7') | 278 | 19–38 | 381–726 | 315 | ||
SS-B 2133 | 2134 (7') | 334 | 25–51 | 608–998 | 315 | ||
SS-B 2136 | 2134 (7') | 369 | 31–64 | 789–1270 | 315 | ||
SS-B 2146 | 2134 (7') | 460 | 38–64 | 880–1361 | 315 | ||
Extra Large Models | |||||||
SS-B 2127 | 2134 (7') | 278 | 19–38 | 544–1034 | 400 | ||
SS-B 2133 | 2134 (7') | 334 | 25–51 | 866–1424 | 400 | ||
SS-B 2136 | 2134 (7') | 369 | 31–64 | 1125–1814 | 400 | ||
SS-B 2146 | 2134 (7') | 460 | 38–64 | 1252–1941 | 400 | ||
SS Cone Crusher is a design-based improvement and it allows using the same support elements as traditional spring cone crushers. In this way, a changeover to more modern equipment could be made with less civil works required.
A hydraulic system enables the operator to alter quickly the discharge setting by hand according to production requirements. The fact that there is not much need to do adjustment manually will allow a more steady size of the material crushed.
If hard-to-crush item accidentally gets into the crushing chamber, this hydraulic system will allow releasing the pressure quickly so that the crushing chamber's door opens wider and allows the foreign item going in and thereby protects the equipment from being damaged.
Chambers in different sizes, standard and short-head, are also offered to suit different crushing levels from coarse to super fine.
Standard type Best for medium and coarse crushing when the line needs higher feed capacity and larger throughput.
Short Head type Best for fine and extra-fine crushing when product size control and finished quality are the main focus.
Detailed models include the SS-B series and SS-D series. Selection can be based on capacity, feed size and required product size.
Ore hardness, feed size and capacity targets differ from project to project, so the right cone crusher setup also differs. Sanland evaluates the actual conditions – ore characteristics, target capacity, product size requirements and the existing plant layout – and provides one-stop custom service: model selection, chamber matching, replacement plans for old equipment and complete process design.
This helps customers upgrade efficiently and keep improving line performance.
To keep the rock crusher running reliably for a long time:
Regularly check lubricant condition and pressure.
Replace liners promptly according to wear.
Keep the feed even and avoid uneven loading.
Inspect the hydraulic system regularly.
Keep a spare-parts stock plan to reduce waiting time.
Following these simple practices extends service life and improves production continuity.
The high efficiency crusher supports an automatic control system that can:
Adjust the discharge setting.
Monitor running status.
Give abnormal alarms.
Control hydraulic protection.
When abnormal load is detected, the system responds quickly to reduce impact risk to the equipment.

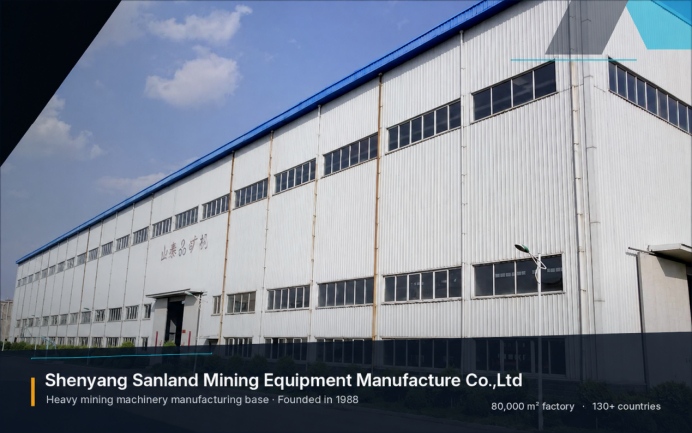

Shenyang Sanland Mining Equipment Manufacture
We have two production lines in Shenyang and Kaiyuan. Together with more than 95 thousand square meters of land they make up of 2,000+ production line(s) and 350+ number of workers employed at both of them. In addition, the company covers all aspects of the production process from casting to machining, welding, the final assembly and testing. This allows us to keep production costs down and quality consistent without sacrificing any of it. Through these years of manufacturing we have produced many kinds and sizes of machines from 1,000 t/h of capacity to 3,000 t/h.
Our clients can also count on us when it comes to custom-built machines, plant upgrades, process design, installation, commissioning, and technical backup as well.
The company operates in 60+ countries across the world where Sanland equipment is used for mineral processing, ore sampling and quarrying work. Some major users in different industries are BHP, Vale, CODELCO, Anglo American, ANSTEEL Philex Mining, China Mining, and Huaxin Cement.
We, therefore, have decided to set up a service center right here in Ontario, Canada. We have local engineering support with a parts warehouse covering 3,000 m2. This means that installation support, troubleshooting, replacement parts, and other after-sales activities can all happen very quickly.
Sanland offers all-inclusive projects support services: From a professional analysis of ore characteristics, desired capacity and existing site conditions - selection of proper equipment.
Throughout construction we offer onsite commissioning services, technical guidance and training to the operators.
After the system becomes functional: 24/7 remote diagnosis help, sp.Cust.
In our Canadian service center and spare parts warehouse, local support is offered not only to customers living in Canada but worldwide as well.
We offer international logistic services in addition to original packaging for large scale mining equipment exports.
We handle the packaging, arranging the freight and shipping tracking for international export while at the same time arranging the spare parts delivery to be in line with the main equipment. We can supply individual machines as also complete crushing lines in dependence on project-specific requirements.
Zhoushan 1,200 metric tons hourly crushed rock plant
Location: Zhoushan, Zhejiang Industry: Stone crushing Material: Granite
Mining company needs a reliable aggregate production system with a very high output. Sanland has supplied the whole crushing line.
Includes the PXZ1200 cone-type crusher, 6 large SS 7 feet diameter conical crushers, a range of auxiliary equipment, and crushing facilities for the raw material.
The plant capacity is 1,200 metric tons per hour which satisfies the needs of a big construction/road project and similar ones.
Is it possible to switch from the traditional spring cone mill to SS series cone?
'Yes, our SS series is an enhancement of the classical cone machine type and we shall check whether your current building, machine connections and product target will work well with the SS type, i.e. we will assess the compatibility."
The parts that wear out most are those that get the most work. If that is not enough, our spare part stores are distributed through various regional areas, so spare parts are not only delivered fast, but also are available where the customer is.
Q: Which quality standards are implemented at the manufacturer?
Among those, ISO 14001 for Ecological Management and ISO 45001 on Occupational Health & Safety have a major impact on our operations. Also, we carry with us a number of "AAA" company credit certificates which attest to our creditworthiness, and, a collection of invention patents and patent registration documents besides that. In accordance with the market requirement, we can also have other kinds of certifications."
We are a professional manufacturer of mining machinery, specializing in the R&D and production of cone crushers, jaw crushers, and other mining crushing equipment. All equipment is manufactured and quality-controlled within our own production system, allowing us to directly address customer requirements and minimize intermediate links.
Yes. Our products can be supplied with internationally recognized certifications such as CE upon customer request. Our production processes strictly comply with quality management system requirements, ensuring that all equipment meets applicable safety and performance standards for export markets.
For standard models, we typically maintain a stable production cycle and complete delivery within 30 days. For customized configurations or special operating conditions, the lead time will be confirmed based on the specific solution. A clear production and delivery schedule will be provided upon order confirmation.
For complete machinery, the MOQ is generally one unit. For wear parts and accessories, the MOQ can be confirmed based on the specific model and requirements—please feel free to consult us for details.
Prior to shipment, all equipment undergoes anti-rust and anti-moisture treatment. We typically adopt wooden crates or reinforced packaging to ensure safe delivery during long-distance sea or land transportation.
We offer flexible shipping solutions including sea freight, land transportation, or multimodal transport, and we cooperate with customers or their designated freight forwarders to manage container loading and dispatch arrangements.
We generally support commonly used international payment methods such as T/T (telegraphic transfer). Specific payment terms can be negotiated based on the order value and cooperation circumstances.
Yes. We offer customized production and OEM services to meet specific customer requirements, including adjustments to equipment structure, technical parameters, and logo/branding customization.
Prior to order confirmation, we can provide product specifications, technical descriptions, application recommendations, and relevant images or documentation to help customers gain a thorough understanding of equipment performance and make informed procurement decisions.
