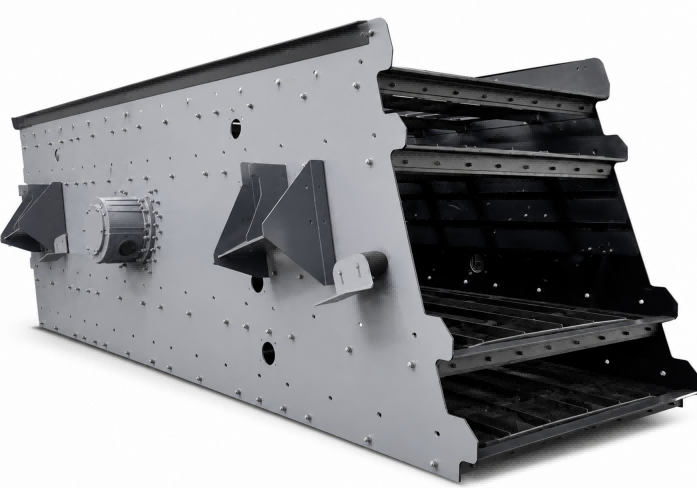

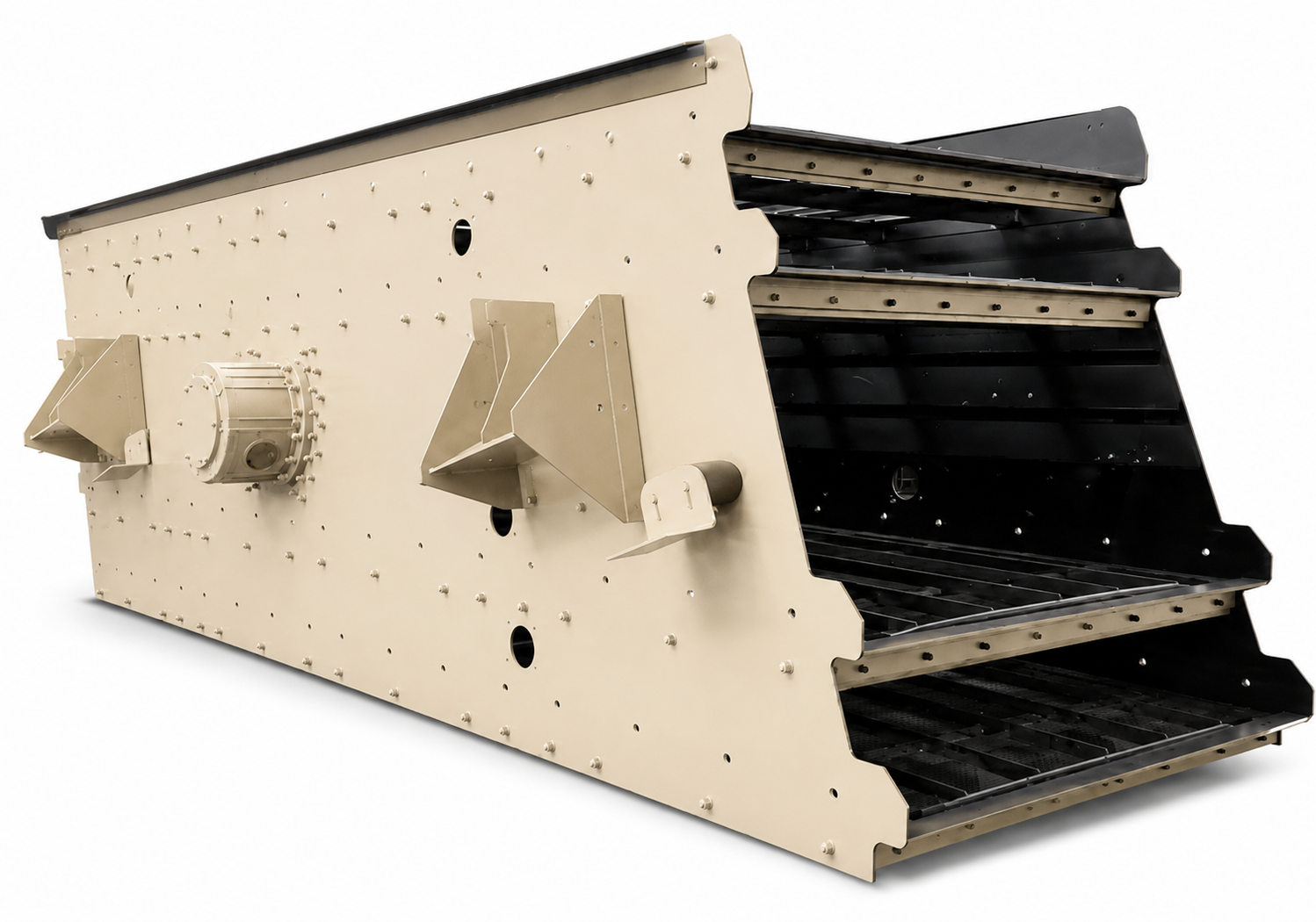

Vibrating sieve machine is an excellent mining screening equipment that helps to greatly increase screening accuracy and lighten the work of loading back the material in case of poor screening.
Maximum Feed Size: 400 mm Minimum Feed Size: 1 mm Material Capacity: 300-1200 T/H
Daily, the mining units are often faced with:
The problem where the layering of the material is not perfect resulting in low degree of screening.
Mismatch between the amount of the material passing out the mesh screen being less than required and thus more material being loaded back causing heavier load to the screening operation.
The high volume of the returning material results in an overload of the crushing circuits and a very quick fatigue in terms of the wear at the crushing stages.
The machine can be damaged by prolonged periods of vibration causing fatigue in the metal.
The screening sheets would need replacement very quickly leading to a stoppage of the production line for a period of time.

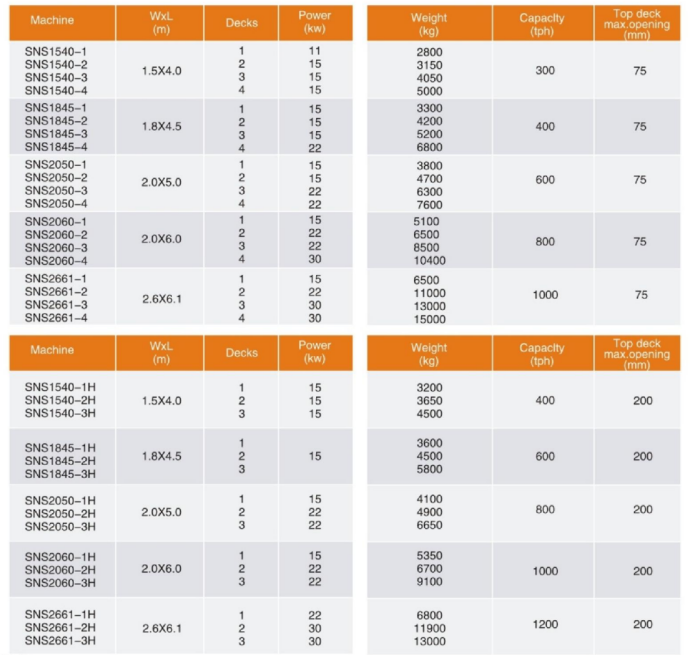

Machine | W×L | Decks | Power (kW) | Weight (kg) | Capacity (tph) | Top deck max opening (mm) |
SNS1540-1 | 1.5×4.0 | 1 | 11 | 2800 | 300 | 75 |
SNS1540-2 | 1.5×4.0 | 2 | 15 | 3150 | 300 | 75 |
SNS1540-3 | 1.5×4.0 | 3 | 15 | 4050 | 300 | 75 |
SNS1540-4 | 1.5×4.0 | 4 | 15 | 5000 | 300 | 75 |
SNS1845-1 | 1.8×4.5 | 1 | 15 | 3300 | 400 | 75 |
SNS1845-2 | 1.8×4.5 | 2 | 15 | 5200 | 400 | 75 |
SNS1845-3 | 1.8×4.5 | 3 | 15 | 4200 | 400 | 75 |
SNS1845-4 | 1.8×4.5 | 4 | 22 | 6800 | 400 | 75 |
SNS2050-1 | 2.0×5.0 | 1 | 15 | 3800 | 600 | 75 |
SNS2050-2 | 2.0×5.0 | 2 | 15 | 4700 | 600 | 75 |
SNS2050-3 | 2.0×5.0 | 3 | 22 | 6300 | 600 | 75 |
SNS2050-4 | 2.0×5.0 | 4 | 22 | 7600 | 600 | 75 |
SNS2060-1 | 2.0×6.0 | 1 | 15 | 5100 | 800 | 75 |
SNS2060-2 | 2.0×6.0 | 2 | 22 | 6500 | 800 | 75 |
SNS2060-3 | 2.0×6.0 | 3 | 22 | 8500 | 800 | 75 |
SNS2060-4 | 2.0×6.0 | 4 | 30 | 10400 | 800 | 75 |
SNS2661-1 | 2.6×6.1 | 1 | 15 | 6500 | 1000 | 75 |
SNS2661-2 | 2.6×6.1 | 2 | 22 | 11000 | 1000 | 75 |
SNS2661-3 | 2.6×6.1 | 3 | 30 | 13000 | 1000 | 75 |
SNS2661-4 | 2.6×6.1 | 4 | 30 | 15000 | 1000 | 75 |
Machine | W×L | Decks | Power (kW) | Weight (kg) | Capacity (tph) | Top deck max opening (mm) |
SNS1540-1H | 1.5×4.0 | 1 | 15 | 3200 | 400 | 200 |
SNS1540-2H | 1.5×4.0 | 2 | 15 | 3650 | 400 | 200 |
SNS1540-3H | 1.5×4.0 | 3 | 15 | 4500 | 400 | 200 |
SNS1845-1H | 1.8×4.5 | 1 | 15 | 3600 | 600 | 200 |
SNS1845-2H | 1.8×4.5 | 2 | 15 | 4500 | 600 | 200 |
SNS1845-3H | 1.8×4.5 | 3 | 15 | 5800 | 600 | 200 |
SNS2050-1H | 2.0×5.0 | 1 | 15 | 4100 | 800 | 200 |
SNS2050-2H | 2.0×5.0 | 2 | 22 | 4900 | 800 | 200 |
SNS2050-3H | 2.0×5.0 | 3 | 22 | 6650 | 800 | 200 |
SNS2060-1H | 2.0×6.0 | 1 | 15 | 5350 | 1000 | 200 |
SNS2060-2H | 2.0×6.0 | 2 | 22 | 6700 | 1000 | 200 |
SNS2060-3H | 2.0×6.0 | 3 | 22 | 9100 | 1000 | 200 |
SNS2661-1H | 2.6×6.1 | 1 | 22 | 6800 | 1200 | 200 |
SNS2661-2H | 2.6×6.1 | 2 | 30 | 11900 | 1200 | 200 |
SNS2661-3H | 2.6×6.1 | 3 | 30 | 13000 | 1200 | 200 |

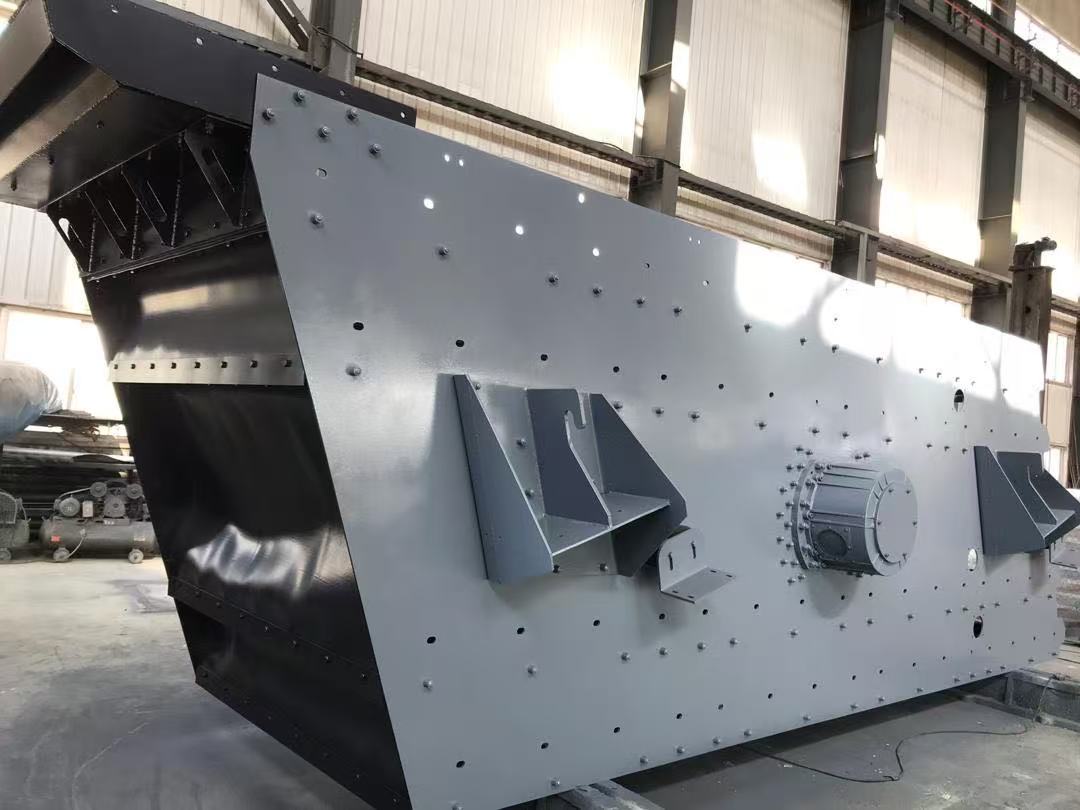

Instead of traditional welding, the frame uses bolt connections. This reduces the risk of structural fatigue caused by long-term vibration.
Screen angle, amplitude and speed can be adjusted according to material moisture, particle size and capacity needs.
The modular exciter with dual bearings keeps the machine running smoothly and makes later maintenance easier.
Wear-resistant liners protect the main impact areas, slowing down wear from material impact.

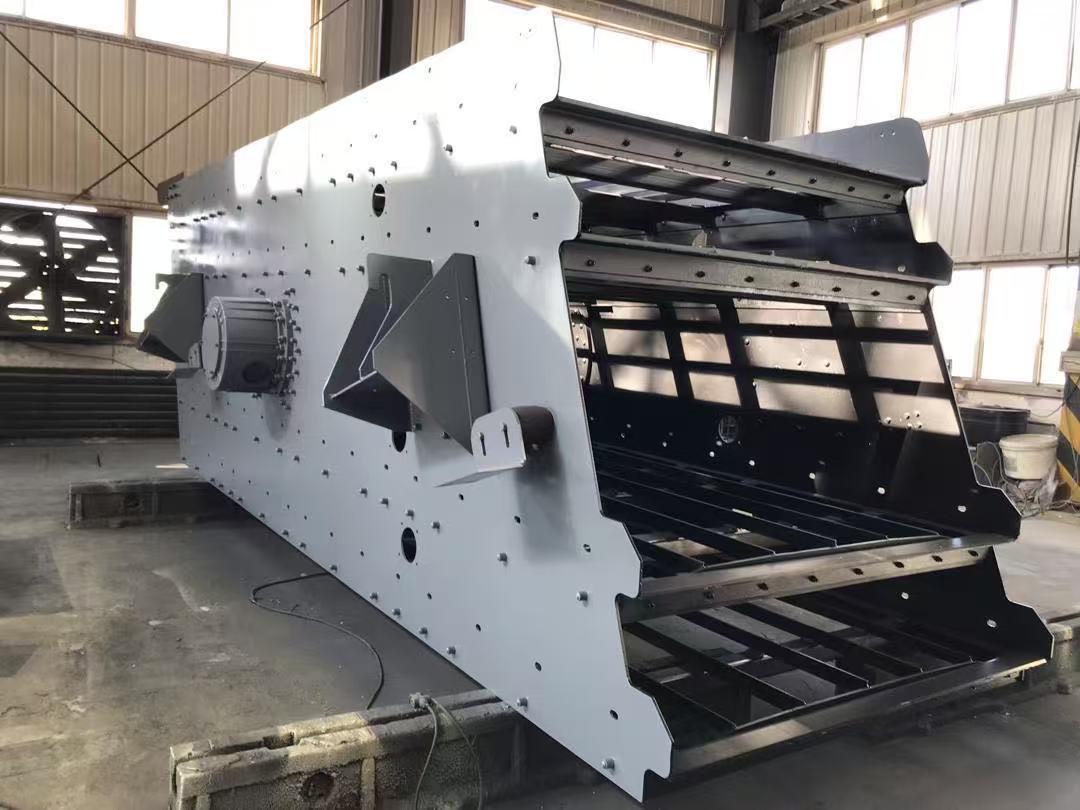

There is enough space between decks, so changing screen panels and doing daily checks is safer and more convenient.
Besides using this equipment for mining such ores as iron, copper and gold, we also process both, metal and non-metallic ores. The equipment is widely applicable in manufacturing fine materials, it is the ideal tool for granite processing, basalt rock crushing and screening, manufactured sand production, etc. The company is also involved in resource recovery through construction waste screening of materials to be reclaimed and processing of the recycled aggregate.
Vibrating sieve machine working conditions influence the choice of the screen. Possible options are:
Manganese steel meshes - These are the ones that can deal with high impact, as well as big pieces of rock.
Polyurethane screens - For wet screening applications the polyurethane option is most suitable as it is wearing resistant and quieter than other alternatives.
Perforated wear resistant steel plates - these provide good screening for material with big blocks.
Sanland can advise you based on the conditions of the mining site what type of Screen Media will be most effective for you.
In order to keep the machine running reliably over a long time:
One should always monitor temperature of the exciting bearings.
If nuts and bolts become loosen, this must be checked.
You should change screen plates whenever they get damaged, otherwise the performance might be affected.
Make sure that the rate of feeding material is uniform in order to avoid overloading the area locally.
Wear liners should be checked from time to time.
Regularly doing such tasks helps in preventing sudden breakdown of the machine and it will last for many years.
Established in 1988 in Shenyang, China, Sanland manufactures crushing, screening, mineral processing and material handling equipment.
Facilities in Shenyang and Kaiyuan cover 95,000 m² and employ over 350 people. Full in-house production — casting, machining, welding, assembly and testing — ensures tight quality control from raw material to finished product.
In 30+ years we have delivered more than 110 crushing lines worldwide (100–3,000 t/h) and also provide custom equipment, plant upgrades, process design, installation, commissioning and technical support.
Equipment is operating in mining, quarrying and aggregate projects across 60+ countries, including Chile, Peru, Australia, Saudi Arabia, Russia and Southeast Asia. Clients include BHP, Vale, CODELCO, Anglo American, ANSTEEL, Philex Mining, China Gold and Huaxin Cement.
A service centre in Ontario, Canada, with local engineers and a 3,000 m² parts warehouse, delivers installation support, troubleshooting, spares and after-sales service.
ISO 14001 / ISO 45001 certified, AAA rated and holding multiple patents, Sanland continues to supply reliable solutions to the global mining and aggregate industries.
Sanland provides complete service support for international customers. Before the sale we can analyze process needs, recommend equipment and suggest production line configurations. After delivery we offer installation guidance, commissioning support, operator training, remote technical assistance and spare parts supply. With a service center in Canada and an overseas technical team, we are able to deliver localized support.
Sanland supplies export-standard packaging, coordinates sea freight, tracks shipment progress and can supply spare parts at the same time. According to project needs, we can also arrange complete machine transport and delivery of supporting equipment.
Iron ore screening plant in Australia Location: Australia Industry: Iron ore processing Material: Iron ore
The customer needed a continuous iron ore crushing and screening line. Sanland supplied:
SC100 jaw crusher
SH220 cone crusher
SNS2060-3 vibrating screen machine
The line runs 24 hours a day, crushing and screening iron ore to produce the required iron ore powder. This project shows that the Chinese vibrating screen can operate reliably under high-intensity continuous production conditions.
Custom Screening Solutions
Different mine materials vary in hardness, moisture and particle size distribution. Sanland can design a solution based on feed size, required capacity, product specifications and plant layout. We provide model selection, number of decks, screen media choice and process optimization for the vibrating topsoil screener and related units.
Q: What kinds of screen media can be used with this vibrating screening equipment? A: The use of different screens such as manganese steel type screens or screens made from wearing-resistant wear polyurethane or with punched screens of wear-resistant steel plates depends on the material, and conditions of the working environment. Particle size, moisture, and degree of wearing are the main factors to determine the best choice of the media.
Q: How does the machine help cut the amount of material loaded back? A: A stable vibration path and correctly set screen parameters enable the material to be completely layered. These two aspects contribute to a high screening rate which then leads to a reduction in the amount of material that is unloaded to the crushers as being unqualified.
Q: Is the Chinese vibrating screen able to run continuously for 24 hours? A: Yes. The structure of the machine made to withstand wear, and the exciter systems modular make it suitable for continuous mining operations.
Q: Does Sanland provide you the whole setup for crushing, screening, and conveying?
A: Definitely. We can deliver combined crushing, screening, and conveying equipment according to your required production capacity.
Sanland vibrating sieval machine, the vibrating sieval unit in China, Chinese supplier of vibrating screen machines, and vibrating topsoil screener range offer an excellent practical mean that can enable screening facilities increase precision of screening operations, reduce the burden of the return load and also make it possible for a continuous production to happen without any hiccups.
